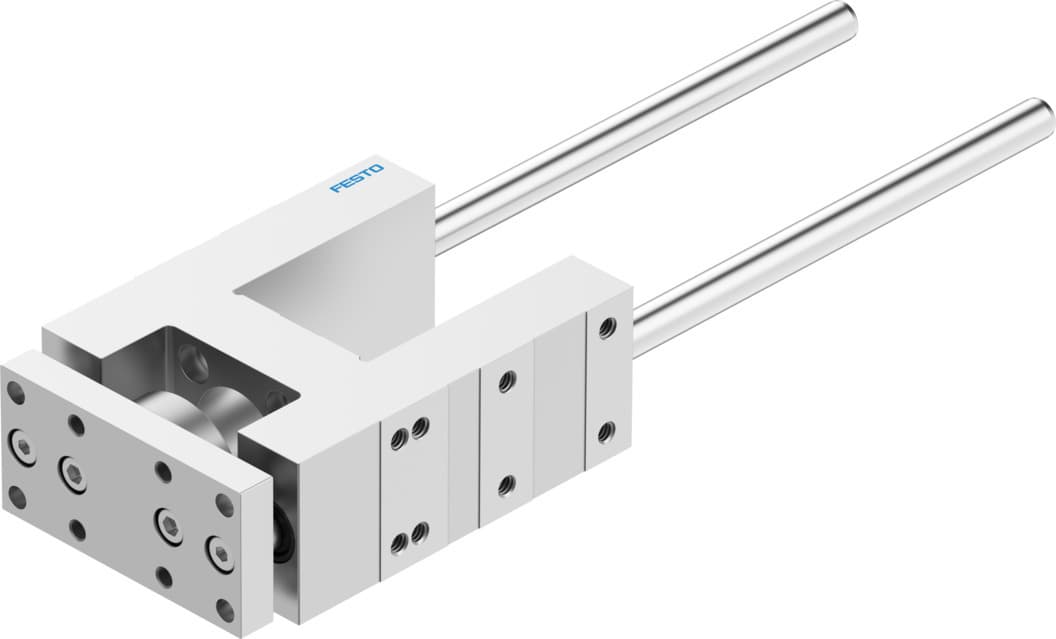

feng-32-160-gf
Product ID:75
Updated: 2026/4/3
Key Features
- 1Ensure high accuracy and durability with a recirculating ball bearing guide. 2、Mount in any position for versatile application integration. 3、Utilize quenched steel and anodized aluminum for robust construction. 4、Operate reliably in a wide -20°C to 80°C temperature range. 5、Support medium-heavy loads with forces up to 1020 N.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 160mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 750g |
| Product weight | 1842g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204063 |
Specifications may be subject to change without notice
