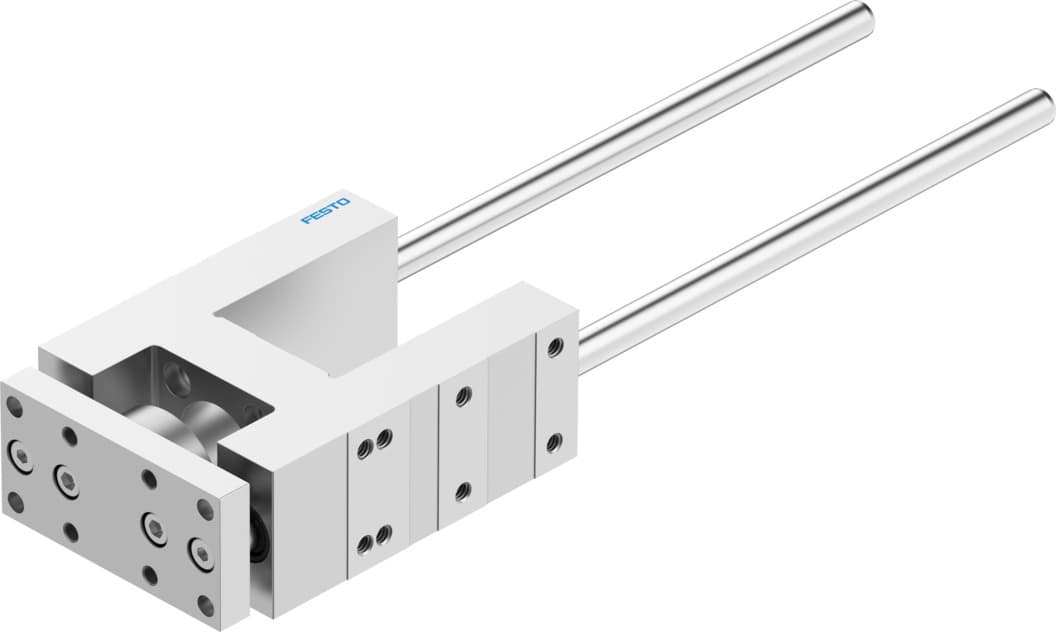

feng-32-200-gf
Product ID:74
Updated: 2026/4/3
Key Features
- 1Ensure smooth motion with a recirculating ball bearing guide. 2、Gain robust durability from tempered steel and aluminum alloy construction. 3、Operate safely in hazardous areas with explosion protection certifications. 4、Install flexibly using an optional female thread mounting position. 5、Handle high loads with 750 N force and 28 Nm moment capacity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 200mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 818g |
| Product weight | 1910g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204064 |
Specifications may be subject to change without notice
