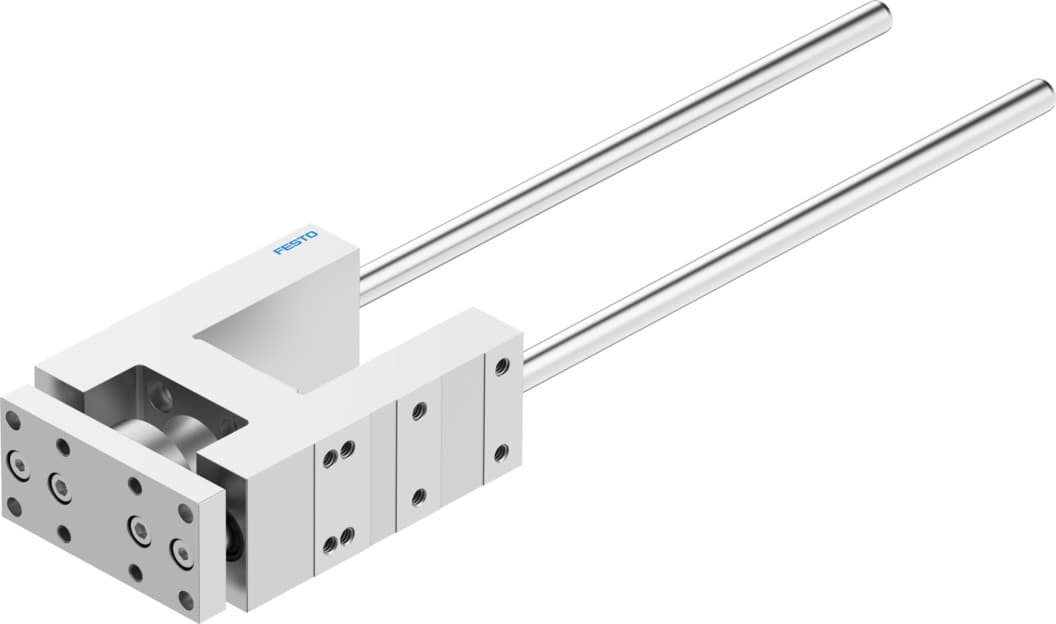

feng-32-250-gf
Product ID:73
Updated: 2026/7/4
Key Features
- 1Deliver precise 250 mm linear motion for high-accuracy applications.
- 2Construct with high-alloy steel and anodized aluminum for durability.
- 3Mount via female thread for flexible system integration.
- 4Certify for explosion protection in zones 1, 2, 21, and 22.
- 5Operate reliably from -20°C to 80°C with 30 N force.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 250mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 903g |
| Product weight | 1995g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204065 |
Specifications may be subject to change without notice
