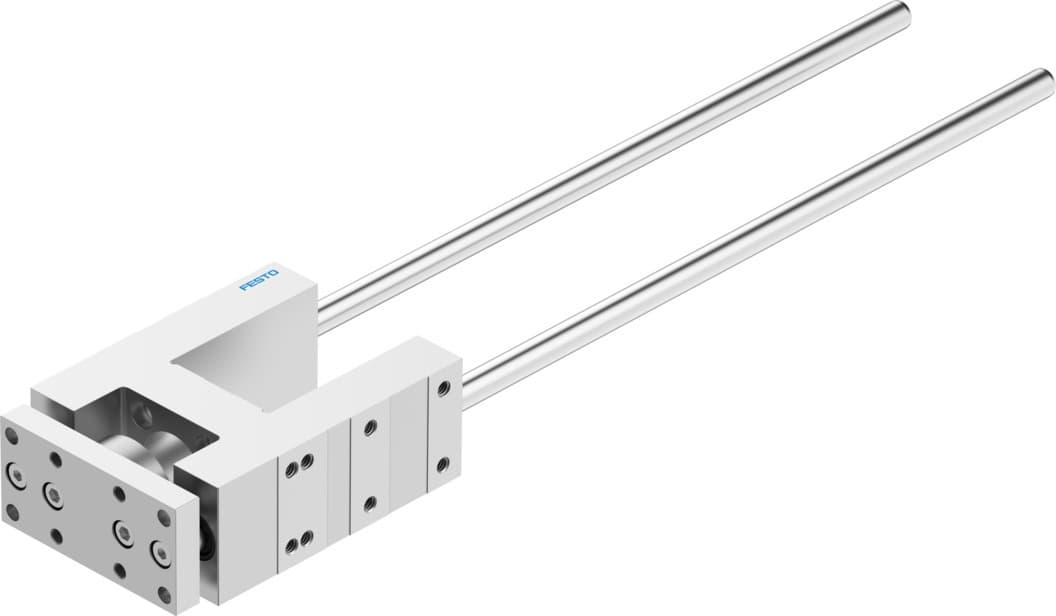

feng-32-320-gf
Product ID:72
Updated: 2026/4/3
Key Features
- 1Ensure precision with a recirculating ball bearing guide for smooth operation. 2、Rely on robust construction from high-alloy steel and aluminum. 3、Mount the guide unit flexibly in any required position. 4、Meet industry standards with VDMA24364-B2-L compliance. 5、Operate reliably across a wide -20°C to 80°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 320mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1022g |
| Product weight | 2114g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204066 |
Specifications may be subject to change without notice
