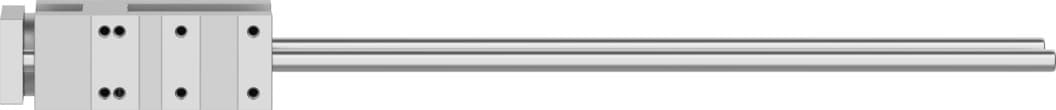

feng-32-400-gf
Product ID:71
Updated: 2026/4/3
Key Features
- 1Feature a high-alloy steel piston rod for excellent performance and long life. 2、Reduce noise and vibration with adjustable pneumatic cushioning. 3、Conform to ISO 15552 standard for guaranteed interchangeability. 4、Mount in any position with optional swivel brackets and foot mounts. 5、Ensure continuous operation with a reliable low-friction design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 400mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1158g |
| Product weight | 2250g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204067 |
Specifications may be subject to change without notice
