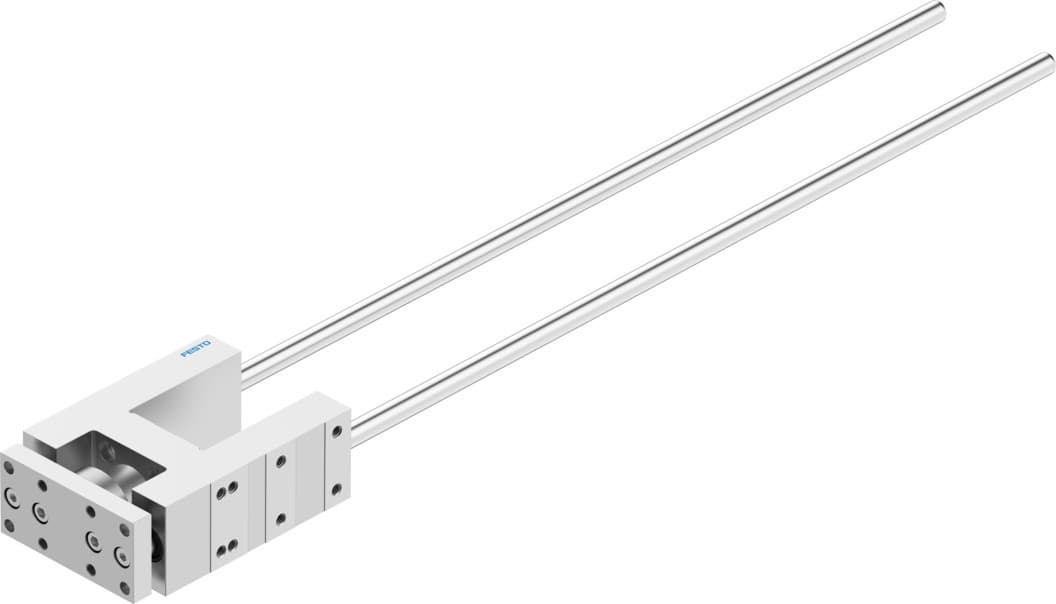

feng-32-500-gf
Product ID:70
Updated: 2026/7/4
Key Features
- 1Ensure smooth motion with a precision plain-bearing guide.
- 2Rely on robust construction using high-alloy steel and aluminum.
- 3Operate reliably in a wide -20°C to 80°C temperature range.
- 4Install flexibly with versatile female thread mounting options.
- 5Meet industry standards including LABS and VDMA24364-B2-L.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 500mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1328g |
| Product weight | 2420g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204068 |
Specifications may be subject to change without notice
