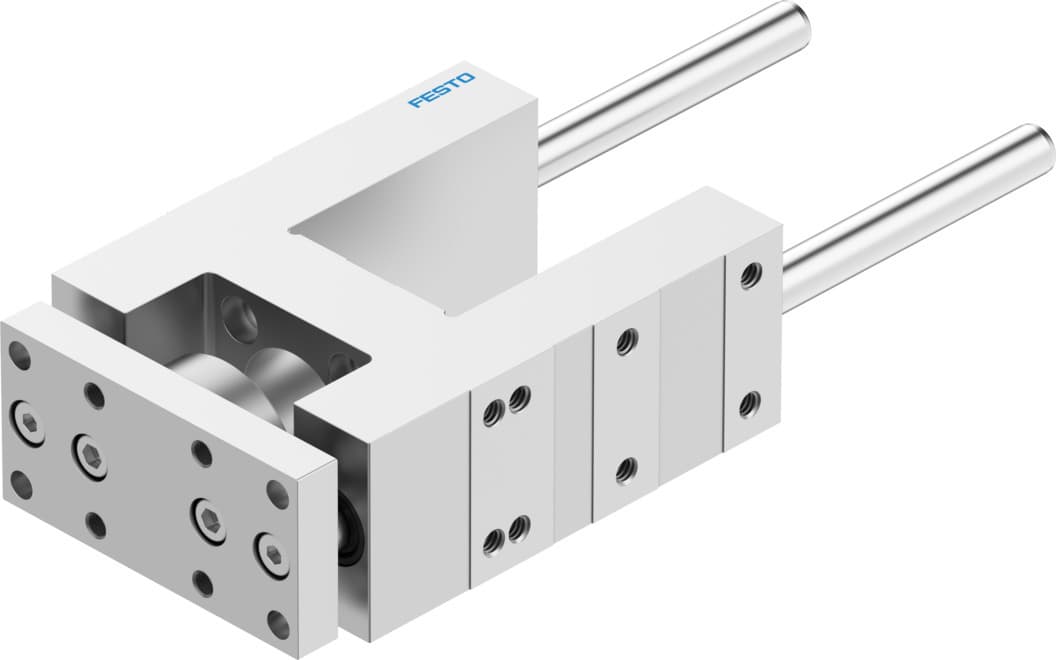

feng-32-80-gf
Product ID:78
Updated: 2026/4/3
Key Features
- 1Achieve precise control with an 80 mm stroke length. 2、Ensure smooth operation using a plain-bearing guide. 3、Operate reliably in temperatures from -20°C to 80°C. 4、Benefit from robust construction with high-alloy steel. 5、Meet RoHS compliance with environmentally sound materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 80mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 614g |
| Product weight | 1706g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204060 |
Specifications may be subject to change without notice
