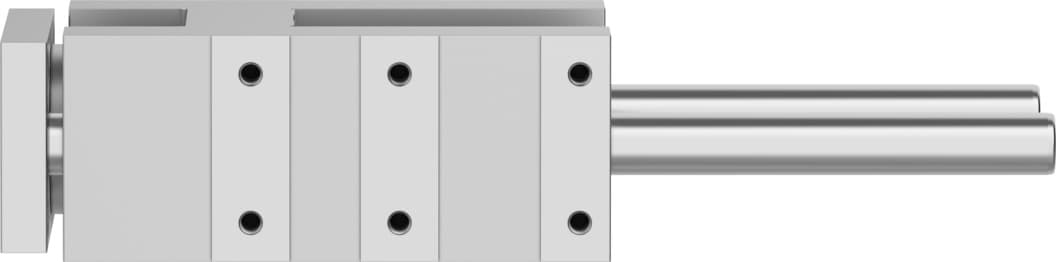

feng-40-100-gf
Product ID:68
Updated: 2026/4/3
Key Features
- 1Engineer precise movements with the FENG-40-100-GF guide unit for high accuracy. 2、Construct robust systems using high-alloy steel and anodized aluminum alloy. 3、Mount flexibly via female thread for versatile installation options. 4、Operate safely in ATEX Zone 1, 2, 21, and 22 hazardous environments. 5、Optimize energy efficiency with a design for low displacement forces.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 100mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1092g |
| Product weight | 2790g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204070 |
Specifications may be subject to change without notice
