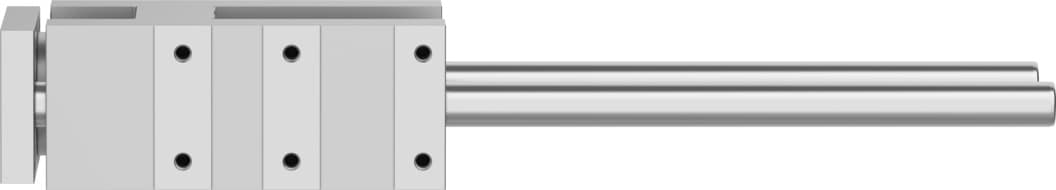

feng-40-200-gf
Product ID:66
Updated: 2026/4/3
Key Features
- 1Engineer high-precision, smooth movements for industrial applications. 2、Design for explosion protection in zones 1, 2, 21, and 22. 3、Build with tempered steel and anodized aluminum alloy for durability. 4、Mount via female thread for flexible installation and integration. 5、Operate between -20 °C and 80 °C for versatile industrial use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 200mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1402g |
| Product weight | 3100g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204072 |
Specifications may be subject to change without notice
