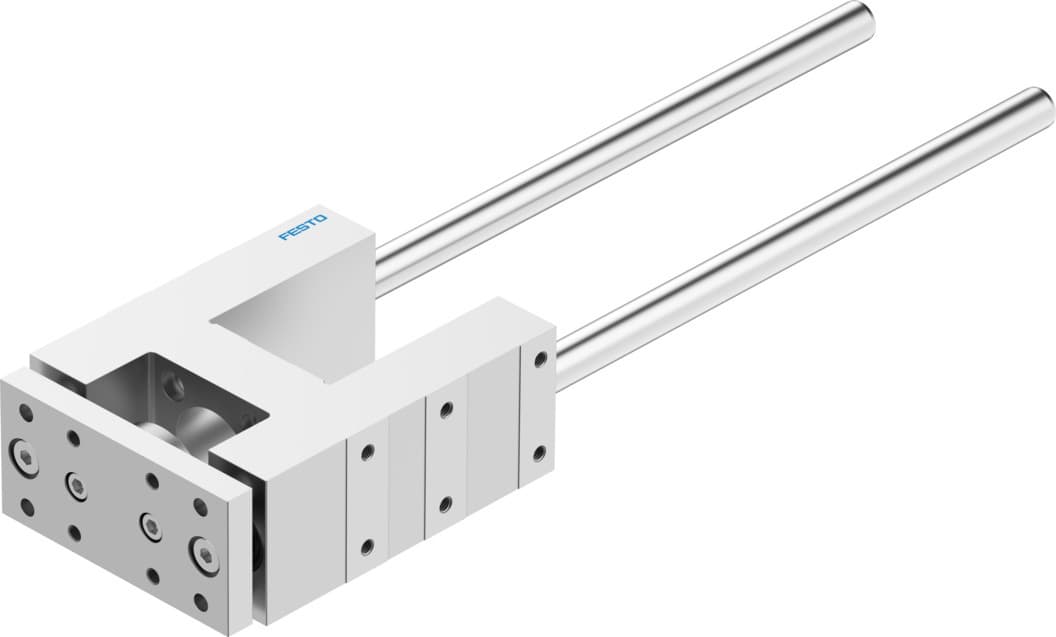

feng-40-250-gf
Product ID:65
Updated: 2026/7/4
Key Features
- 1Achieve precise motion control with a 250mm stroke.
- 2Handle loads up to 1000N in Fy and Fz directions reliably.
- 3Install in any position for maximum design flexibility.
- 4Meet safety standards with ATEX certification for hazardous zones.
- 5Ensure durability with quenched steel and anodized aluminum construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 250mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1557g |
| Product weight | 3255g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204073 |
Specifications may be subject to change without notice
