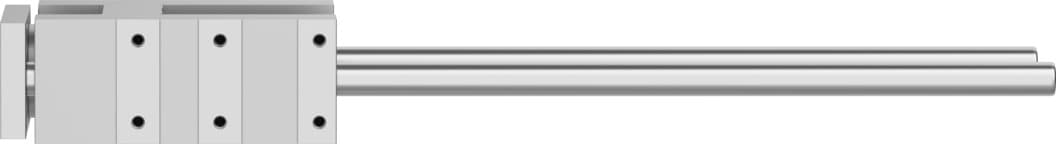

feng-40-320-gf
Product ID:64
Updated: 2026/7/4
Key Features
- 1Ensure smooth operation for 40mm bore cylinders with 320mm stroke.
- 2Configure mounting positions and guide types for flexibility.
- 3Meet safety in ATEX zones 1, 2, 21, and 22.
- 4Built with high-alloy steel and aluminum for durability.
- 5Enhance safety with integrated explosion protection design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 320mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1774g |
| Product weight | 3472g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204074 |
Specifications may be subject to change without notice
