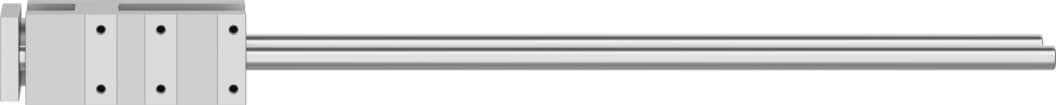

feng-40-500-gf
Product ID:63
Updated: 2026/4/3
Key Features
- 1Achieve versatile positioning with a stroke range from 10 mm to 500 mm. 2、Ensure smooth and precise motion using the integrated plain-bearing guide. 3、Operate safely in hazardous areas with ATEX certification for zones 1, 2, and 21. 4、Benefit from a stable 2480 g base weight and balanced load distribution. 5、Rely on durable, RoHS-compliant construction with high-alloy steel and aluminum.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 500mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 2332g |
| Product weight | 4030g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204075 |
Specifications may be subject to change without notice
