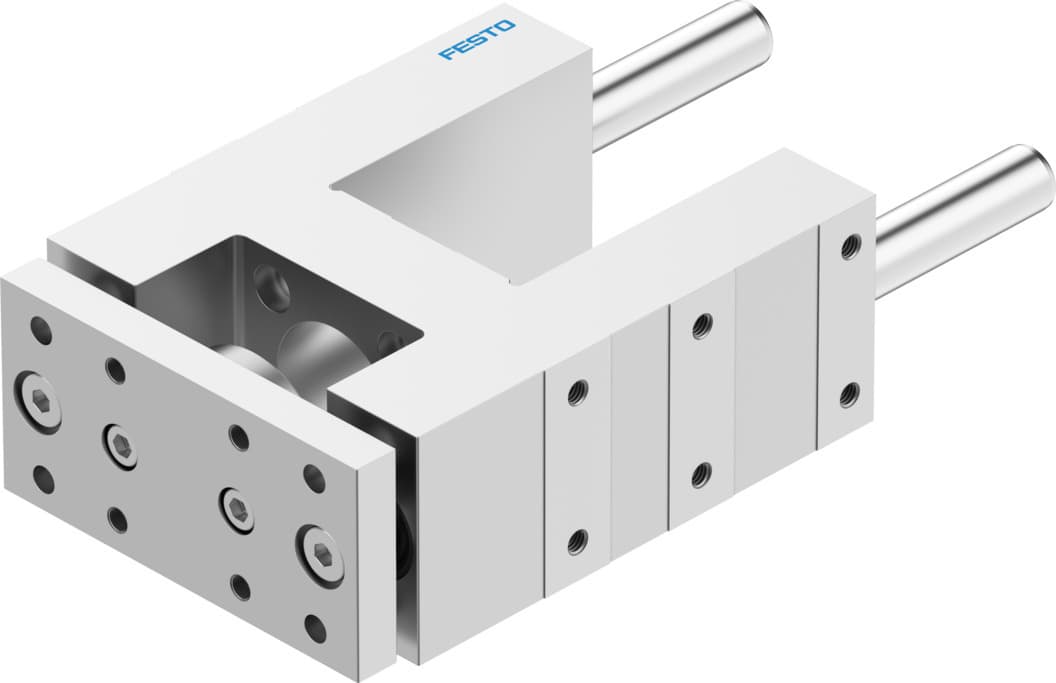

feng-40-50-gf
Product ID:69
Updated: 2026/4/3
Key Features
- 1Ensure precision linear motion with the FENG-40-50-GF guide unit. 2、Integrate easily into systems with ISO 15552 standards compatibility. 3、Reduce wear using a smooth plain-bearing guide design. 4、Benefit from durable aluminum and sintered bronze construction. 5、Customize applications with available stroke lengths from 50mm.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 50mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 937g |
| Product weight | 2635g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204069 |
Specifications may be subject to change without notice
