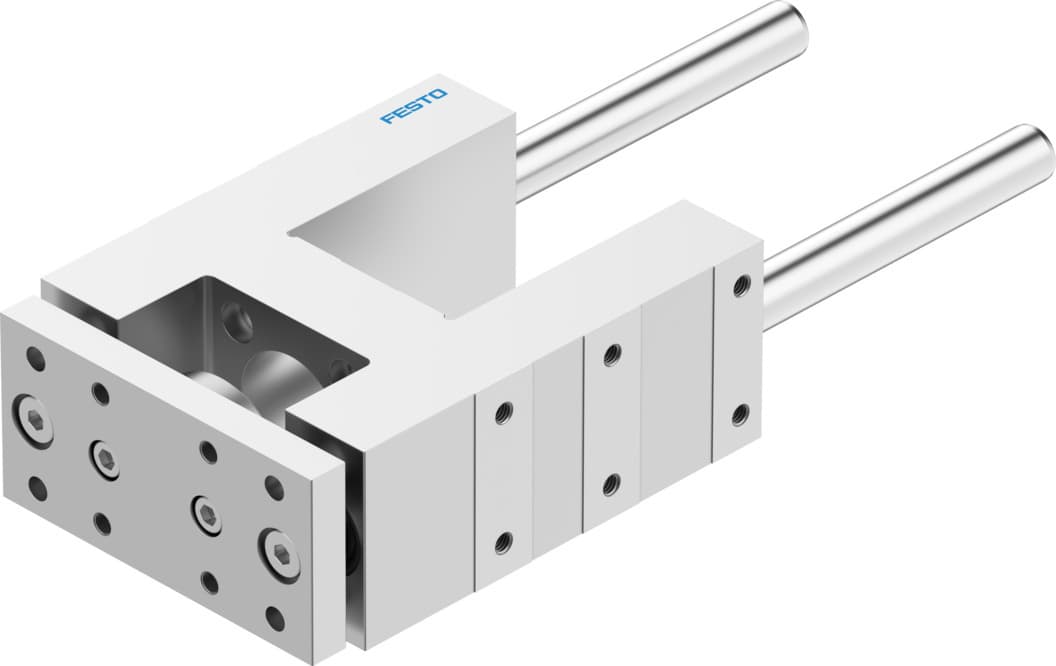

feng-40- -kf
Product ID:8163
Updated: 2026/4/5
Key Features
- 1Utilize a recirculating ball bearing guide for high precision and durability. 2、Handle maximum forces up to 1000 N for demanding applications. 3、Ensure smooth operation with a 400 mm stroke length. 4、Meet compliance standards with RoHS-certified construction. 5、Benefit from a design suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 10mm 500mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 1000N | Max. force Fy static | 1260N |
| Max. force Fz | 1000N | Max. force Fz static | 1260N |
| Max. torque Mx | 44Nm | Max. static moment Mx | 55Nm |
| Max. torque My | 52Nm | Max. static moment My | 65Nm |
| Max. torque Mz | 52Nm | Max. static moment Mz | 65Nm |
| Displacement force | 15N | Additional moving mass per 10?mm stroke | 32g |
| Basic weight with 0?mm stroke | 2370g | Additional weight per 10?mm stroke | 32g |
| Center of gravity of moving mass with 0 mm stroke | 57mm | Center of gravity of moving mass with 10 mm stroke | 4.7mm |
| Type of mounting | With internal thread | Note on materials | RoHS-compliant |
| Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
| Material of yoke plate | Wrought aluminum alloy, anodized | Manufacturer ID | 34488 |
Specifications may be subject to change without notice
