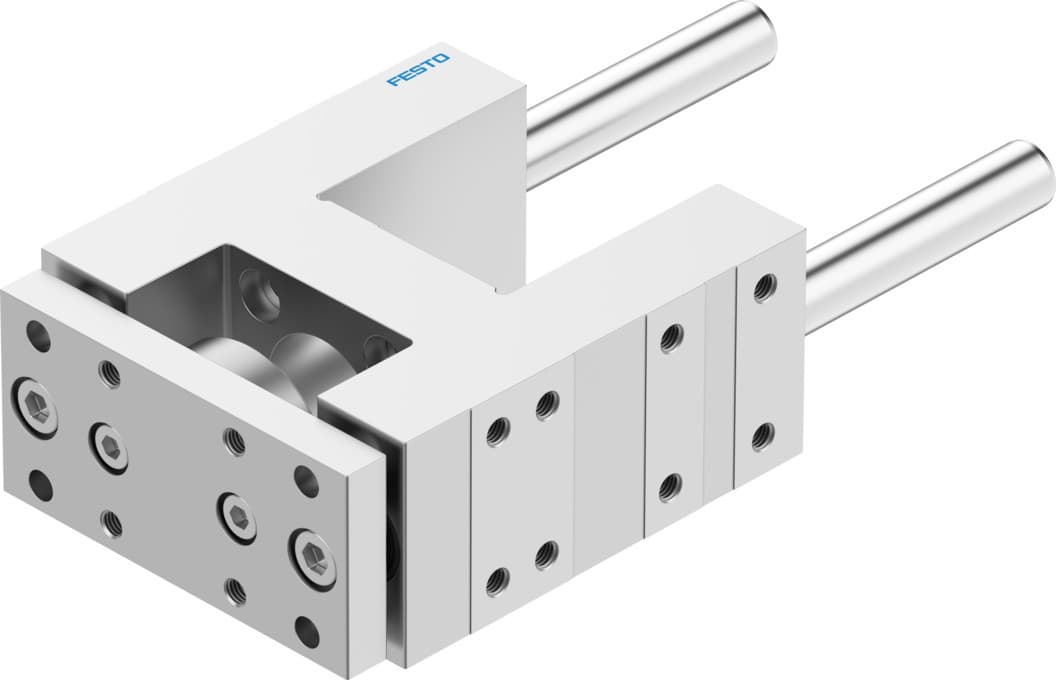

feng-50-100-gf
Product ID:60
Updated: 2026/4/3
Key Features
- 1Ensure precise guiding in transfer or grab mechanisms. 2、Prevent piston rod rotation and handle high load torques. 3、Suit various applications like print and automation systems. 4、Construct from high-quality, durable stainless steel. 5、Integrate seamlessly with ISO standard cylinders.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 100mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 1894g |
| Product weight | 4670g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204078 |
Specifications may be subject to change without notice
