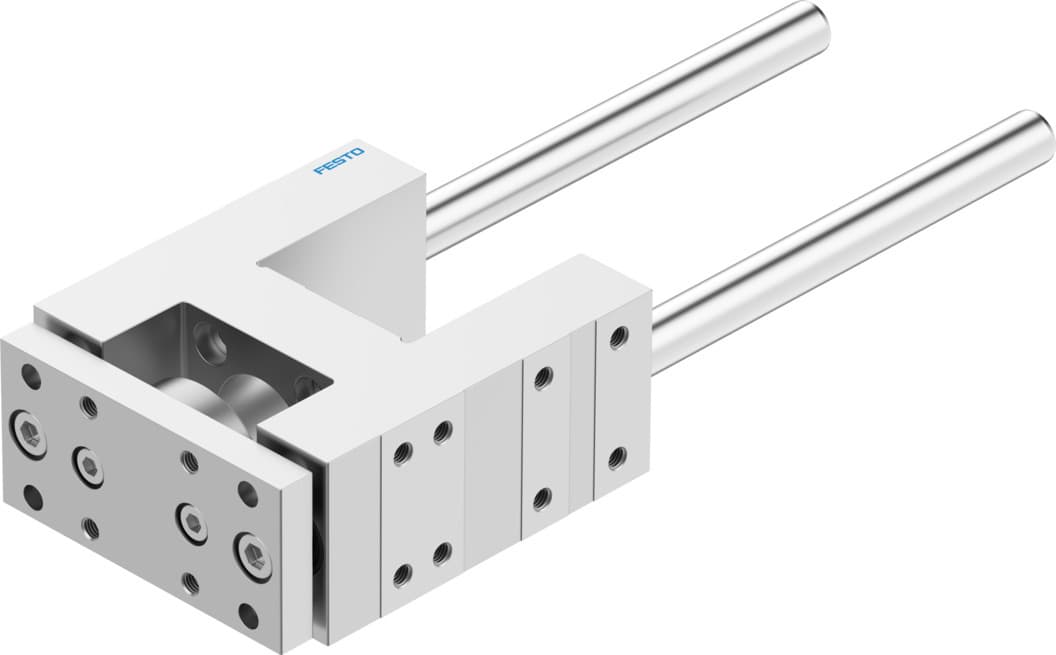

feng-50-200-gf
Product ID:59
Updated: 2026/4/3
Key Features
- 1Ensure precise movement and prevent piston rod rotation. 2、Apply in print, semiconductor, automation, and robotics industries. 3、Construct from durable, corrosion-resistant stainless steel. 4、Customize the guide unit to meet specific application needs. 5、Integrate seamlessly with ISO 06432 and ISO 15552 cylinders.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 200mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 2374g |
| Product weight | 5150g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204079 |
Specifications may be subject to change without notice
