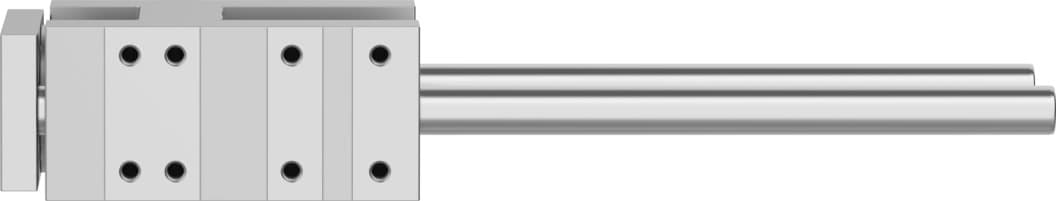

feng-50-250-gf
Product ID:58
Updated: 2026/7/4
Key Features
- 1Feature a recirculating ball bearing guide for high precision.
- 2Offer a 50 mm piston and 250 mm stroke for versatility.
- 3Provide a mounting kit for sensing end positions.
- 4Support loads with a displacement force of 40 N.
- 5Belong to the Festo Core Range for quick delivery.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 250mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 2614g |
| Product weight | 5390g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204080 |
Specifications may be subject to change without notice
