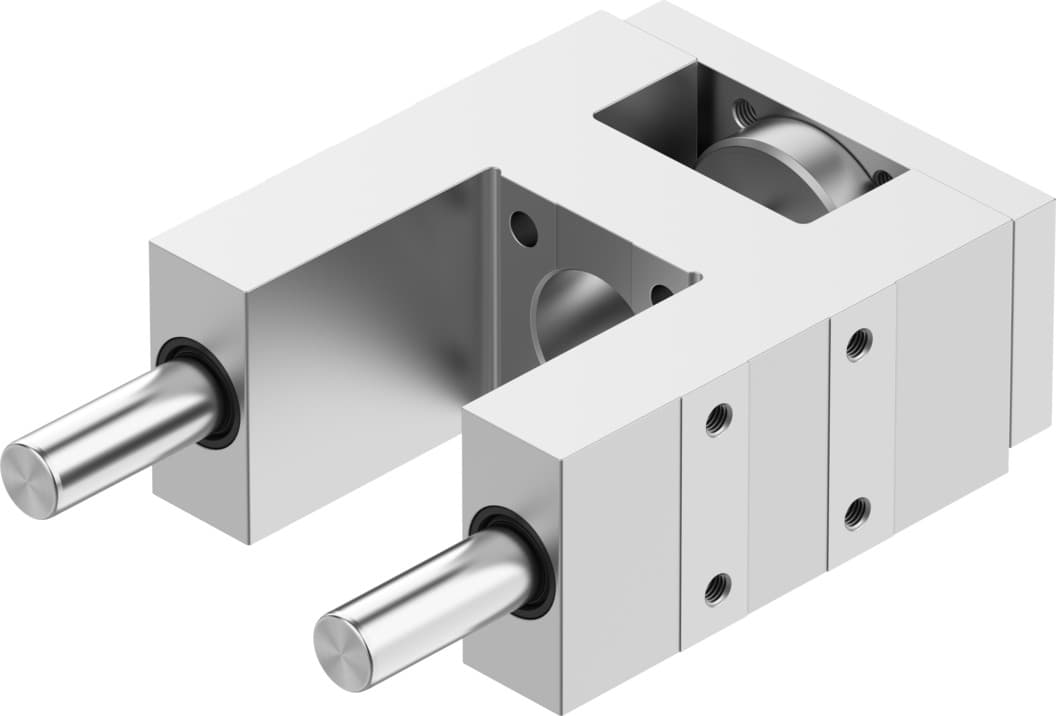

feng-50-50-gf
Product ID:62
Updated: 2026/4/3
Key Features
- 1Mount pneumatic cylinders precisely for smooth operation. 2、Configure strokes from 10 mm to 500 mm. 3、Utilize a low-friction plain-bearing guide. 4、Install the unit in any required position. 5、Ensure durability in demanding industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 50mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 1654g |
| Product weight | 4430g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204076 |
Specifications may be subject to change without notice
