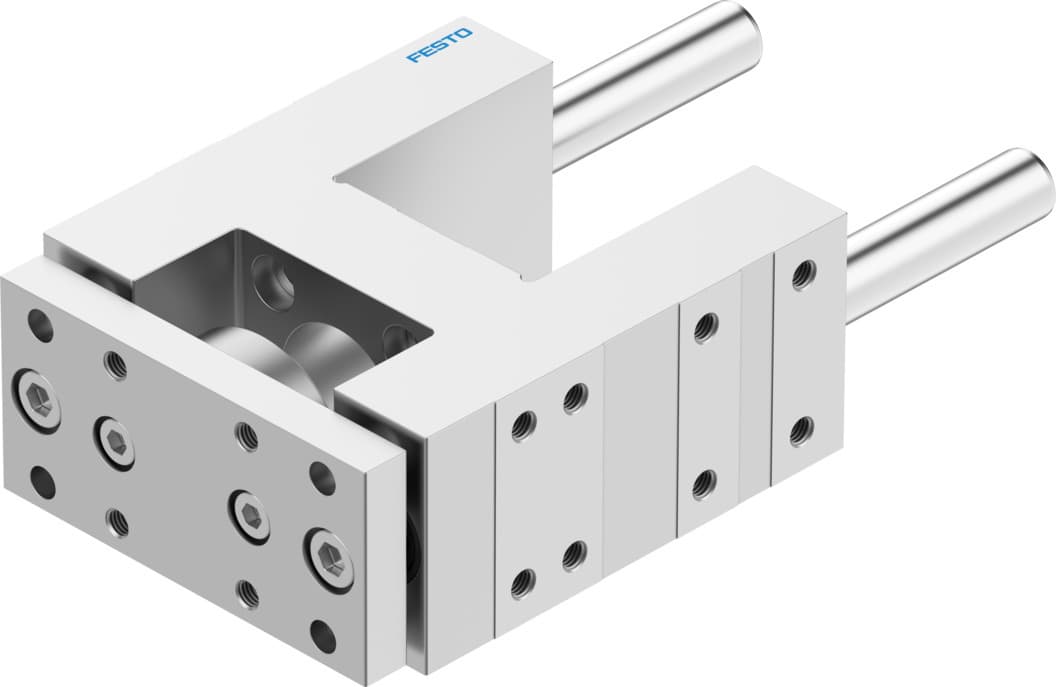

feng-50-80-gf
Product ID:61
Updated: 2026/4/3
Key Features
- 1Engineer precise movement with minimal friction for consistent performance. 2、Operate reliably in ambient temperatures from -20°C to +80°C. 3、Balance lightweight design at ~4190g with robust construction. 4、Integrate quickly using the female thread mounting system. 5、Enhance durability with high-quality, wear-resistant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 80mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 1798g |
| Product weight | 4574g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204077 |
Specifications may be subject to change without notice
