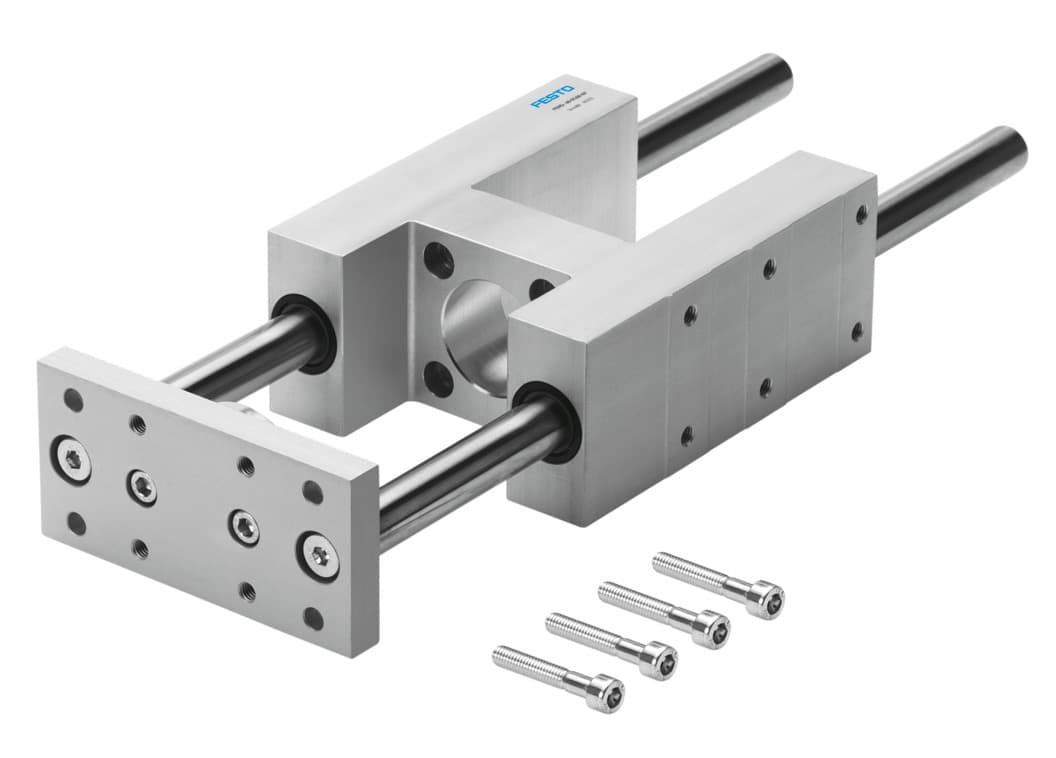

feng-80-320-kf
Product ID:8201
Updated: 2026/4/5
Key Features
- 1Ensure high accuracy and anti-rotation protection with recirculating ball bearings. 2、Mount in any position for flexible installation across applications. 3、Withstand demanding conditions using tempered steel and aluminum alloy. 4、Operate reliably from -20°C to 80°C ambient temperature. 5、Handle high loads up to 2300 N force for heavy-duty performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 80 | Stroke | 320mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 2300N | Max. force Fy static | 3120N |
| Max. force Fz | 2300N | Max. force Fz static | 3120N |
| Max. torque Mx | 170Nm | Max. static moment Mx | 231Nm |
| Max. torque My | 191Nm | Max. static moment My | 259Nm |
| Max. torque Mz | 191Nm | Max. static moment Mz | 259Nm |
| Displacement force | 40N | Product weight | 12894g |
| Type of mounting | With internal thread | Note on materials | RoHS-compliant |
| Material of guide component | Tempered steel | Housing material | Wrought aluminum alloy, anodized |
| Material of yoke plate | Tempered steel | Manufacturer ID | 34526 |
Specifications may be subject to change without notice
