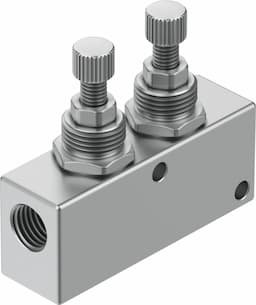

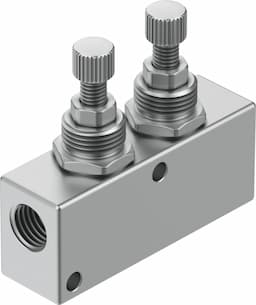

gr-1/8x2-b
Product ID:2334
Updated: 2026/4/3
Key Features
- 1Ensure safe operation with a 10 bar maximum pressure limit. 2、Provide reliable sealing using durable NBR material. 3、Integrate easily into systems with compact 46.2x16mm dimensions. 4、Control pressure precisely in compressed air applications. 5、Meet EU safety standards including ATEX explosion protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 205l/min |
| Standard nominal flow rate in non-return direction | 190l/min | Operating pressure | 0.5bar 10bar |
| Ambient temperature | -20°C 60°C | Housing material | Wrought aluminum alloy |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |

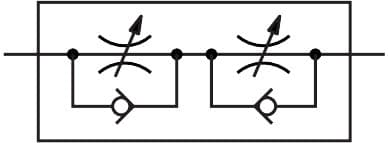

| Symbol | 00991931 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 60°C | Nominal width | 3mm |
| Product weight | 54g | Note on materials | RoHS-compliant |
| Seals material | NBR | Sleeve material | POM |
| Material of adjusting screw | High-alloy steel | Nut material | Wrought aluminum alloy |
| Manufacturer ID | 152612 |
Specifications may be subject to change without notice
