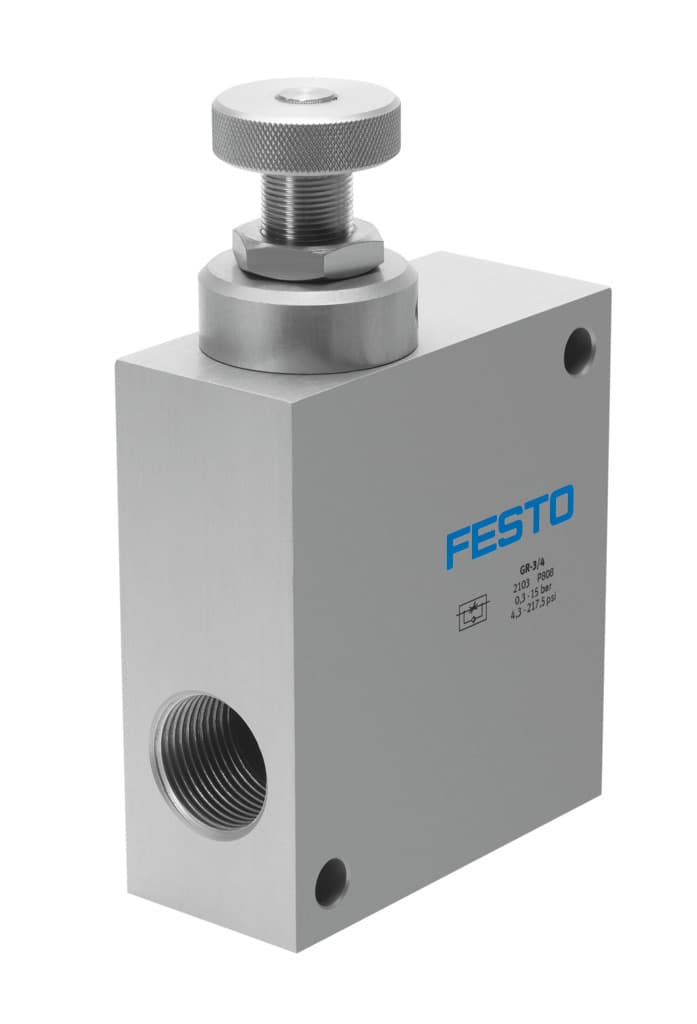

gr-3/4
Product ID:7863
Updated: 2026/4/3
Key Features
- 1Ensure precise pneumatic control with a 3300 l/min max flow rate. 2、Adjust flow easily using the knurled screw component. 3、Connect reliably via ports 1G3/4 and 2G3/4. 4、Handle high-pressure applications up to 15 bar. 5、Rely on a robust 0.938 kg construction for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 | Adjusting element | Knurled screw |
| Type of mounting | Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 3300l/min |
| Standard nominal flow rate in non-return direction | 4800l/min | Operating pressure | 0.3bar 15bar |
| Ambient temperature | -10°C 60°C | Housing material | Wrought aluminum alloy |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 938g |
| Note on materials | RoHS-compliant | Manufacturer ID | 2103 |
Specifications may be subject to change without notice
