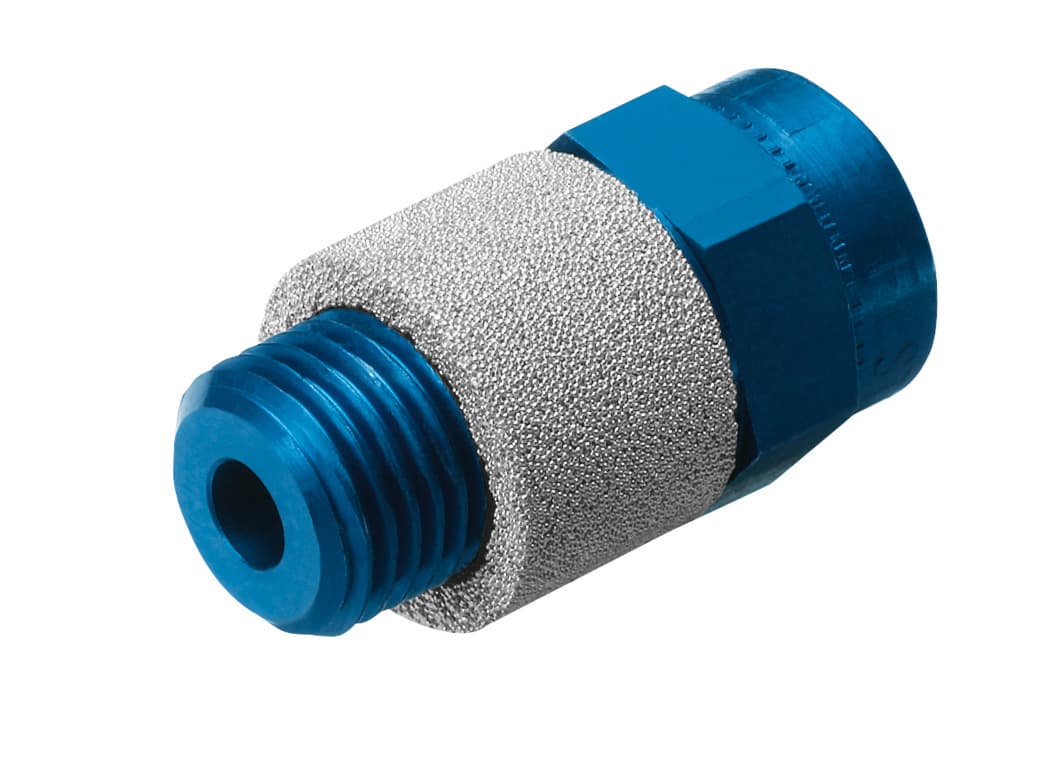

gre-1/2
Product ID:701
Updated: 2026/4/3
Key Features
- 1Control sound pressure precisely for optimal performance in noisy environments. 2、Reduce noise levels with an integrated silencer for critical applications. 3、Integrate easily using the standard 1/2 NPT pneumatic connection. 4、Adjust flow rates from 0 to 3600 l/min to meet specific requirements. 5、Ensure reliable, long-term operation with durable construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Sound pressure flow control function | Selection of additional function | with muffler |
| Pneumatic connection 1 | G1/2 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 3600l/min |
| Standard flow rate 6->0 bar | 0l/min 4300l/min | Operating pressure | 0bar 10bar |
| Ambient temperature | -10°C 70°C | Mounting position | Any |
| Symbol | 00991451 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 70°C | Product weight | 75g |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Material of adjusting screw | Brass |
| Manufacturer ID | 10353 |
Specifications may be subject to change without notice
