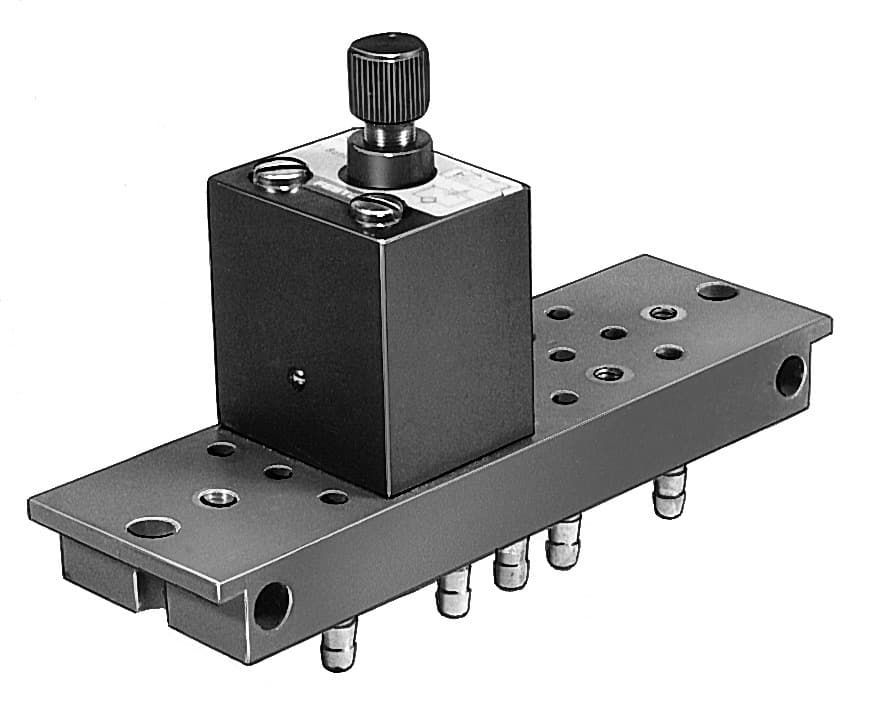

grf-pk-3
Product ID:8505
Updated: 2026/4/3
Key Features
- 1Ensure precise pneumatic control with a 45 L/min flow rate. 2、Install easily using the knurled screw and throughway bores. 3、Operate reliably within a 0.5 to 8 bar pressure range. 4、Withstand harsh conditions from -10°C to 60°C. 5、Maintain performance with oiled operation per ISO standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | PK-3 |
| Pneumatic connection 2 | PK-3 | Adjusting element | Knurled screw |
| Type of mounting | With through-hole | Standard nominal flow rate in flow control direction | 45l/min |
| Standard nominal flow rate in non-return direction | 45l/min | Operating pressure | 0.5bar 8bar |
| Ambient temperature | -10°C 60°C | Housing material | Wrought aluminum alloy |
| Mounting position | Any | Symbol | 00991453 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Product weight | 95g | Material of adjusting screw | Brass |
| Manufacturer ID | 4565 |
Specifications may be subject to change without notice
