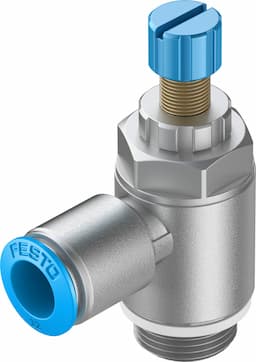

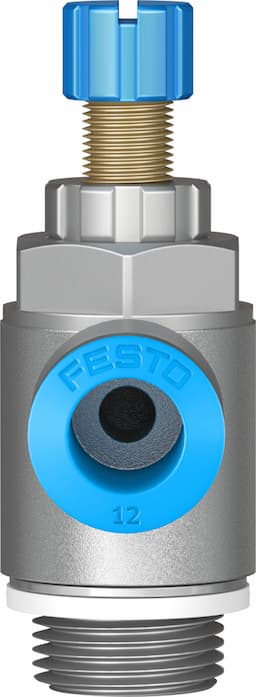

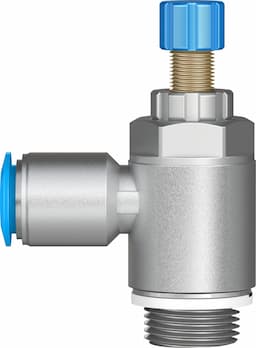

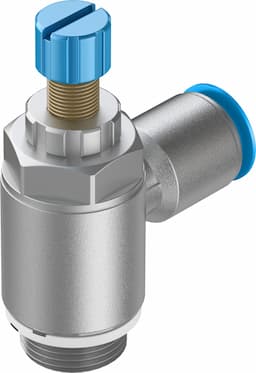

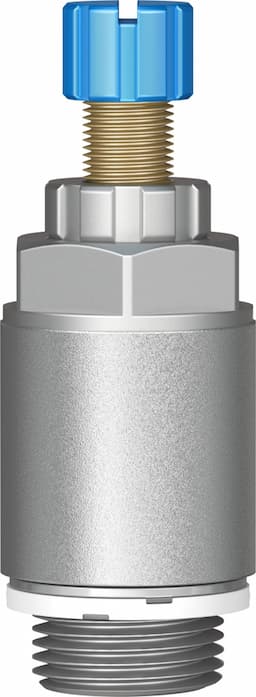

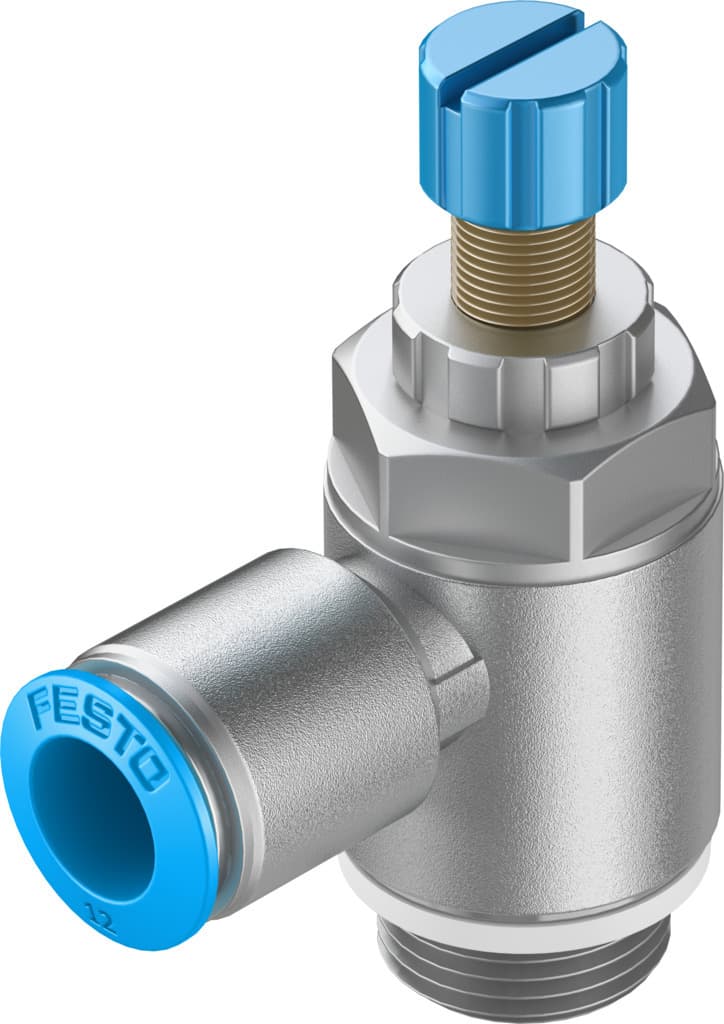

grla-1/2-qs-12-rs-d
Product ID:9763
Updated: 2026/4/3
Key Features
- 1Ensure precise airflow control in pneumatic systems. 2、Connect via M5, G1/8, G1/4, G3/8, G1/2, or G3/4 ports. 3、Rely on durable NBR seals and brass construction. 4、Adjust flow rates easily for optimal application performance. 5、Simplify installation and maintenance with screw-in mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | QS-12 |
| Pneumatic connection 2 | G1/2 | Adjusting element | Knurled screw |
| Type of mounting | Screw-in With external thread | Standard nominal flow rate in flow control direction | 1580l/min |
| Standard nominal flow rate in non-return direction | 925l/min 1605l/min | Operating pressure | 0.2bar 10bar |
| Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
| Mounting position | Any | Symbol | 00991452 |
| Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 2220l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 1910l/min 2500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 15Nm |
| Product weight | 124g | Note on materials | RoHS-compliant |
| Seals material | NBR | Hollow bolt material | Wrought aluminum alloy Anodized |
| Releasing ring material | POM | Knurled head material | Wrought aluminum alloy Anodized |
| Material of adjusting screw | High-alloy stainless steel | Swivel joint material | Die-cast zinc |
| Manufacturer ID | 534344 |
