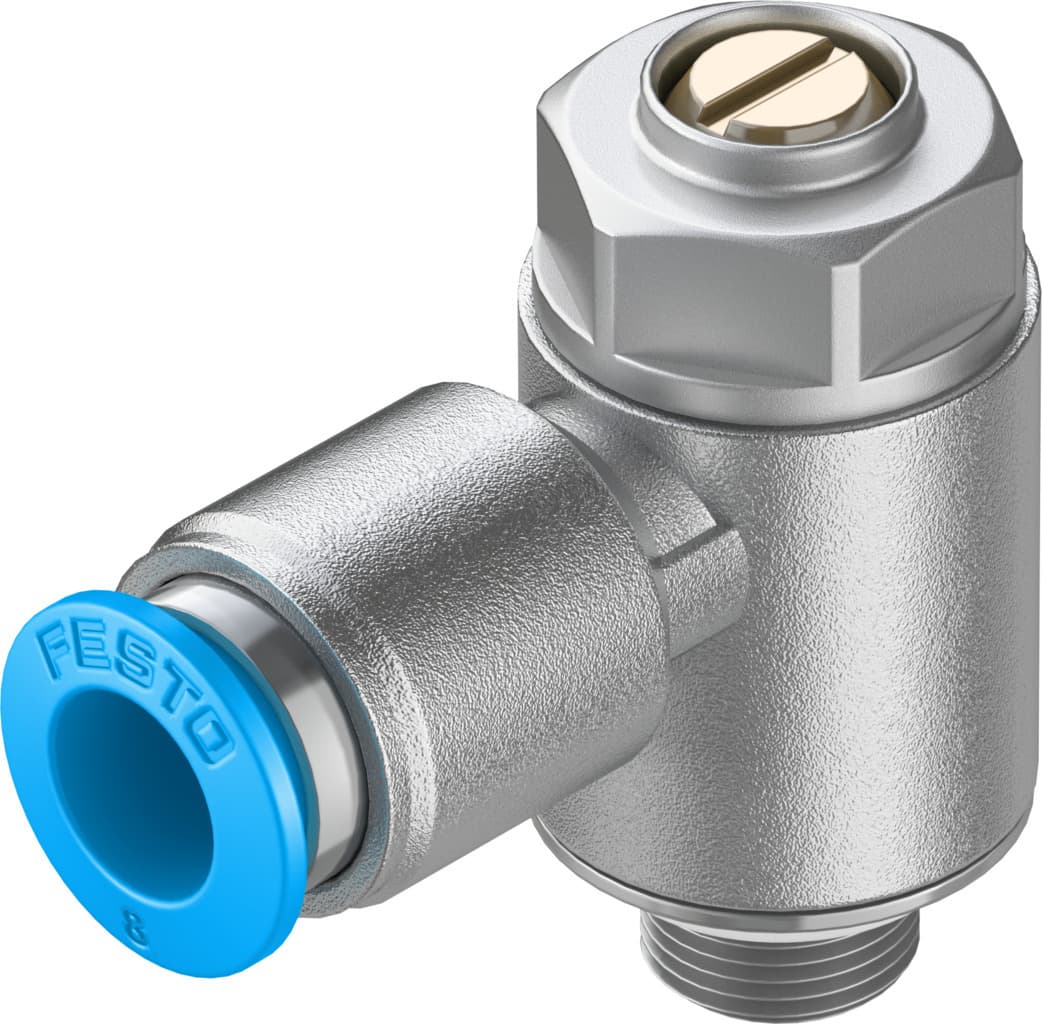

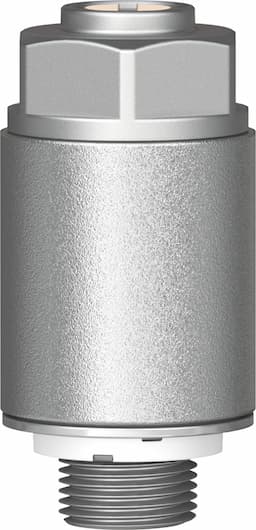

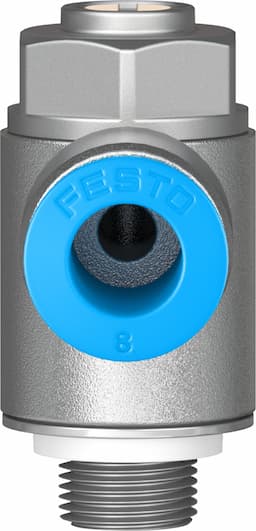

grla-1/8-qs-8-mf-d
Product ID:10259
Updated: 2026/7/4
Key Features
- 1Ensure precise pneumatic control for reliable industrial operations.
- 2Construct with durable brass screws and corrosion-resistant materials.
- 3Install easily using the screw-in mounting to save time.
- 4Operate with standard compressed air per ISO 8573-1:2010.
- 5Fit into compact spaces with a 3 mm nominal width.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G1/8 | Type of mounting | Screw-in With external thread |
| Standard nominal flow rate in flow control direction | 475l/min | Standard nominal flow rate in non-return direction | 325l/min 500l/min |
| Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
| Mounting position | Any | Symbol | 00991452 |
| Operating pressure for entire temperature range | 0.2bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 720l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 610l/min 760l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 40°C |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 32g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Hollow bolt material | Wrought aluminum alloy Anodized | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
| Manufacturer ID | 537076 |
Specifications may be subject to change without notice
