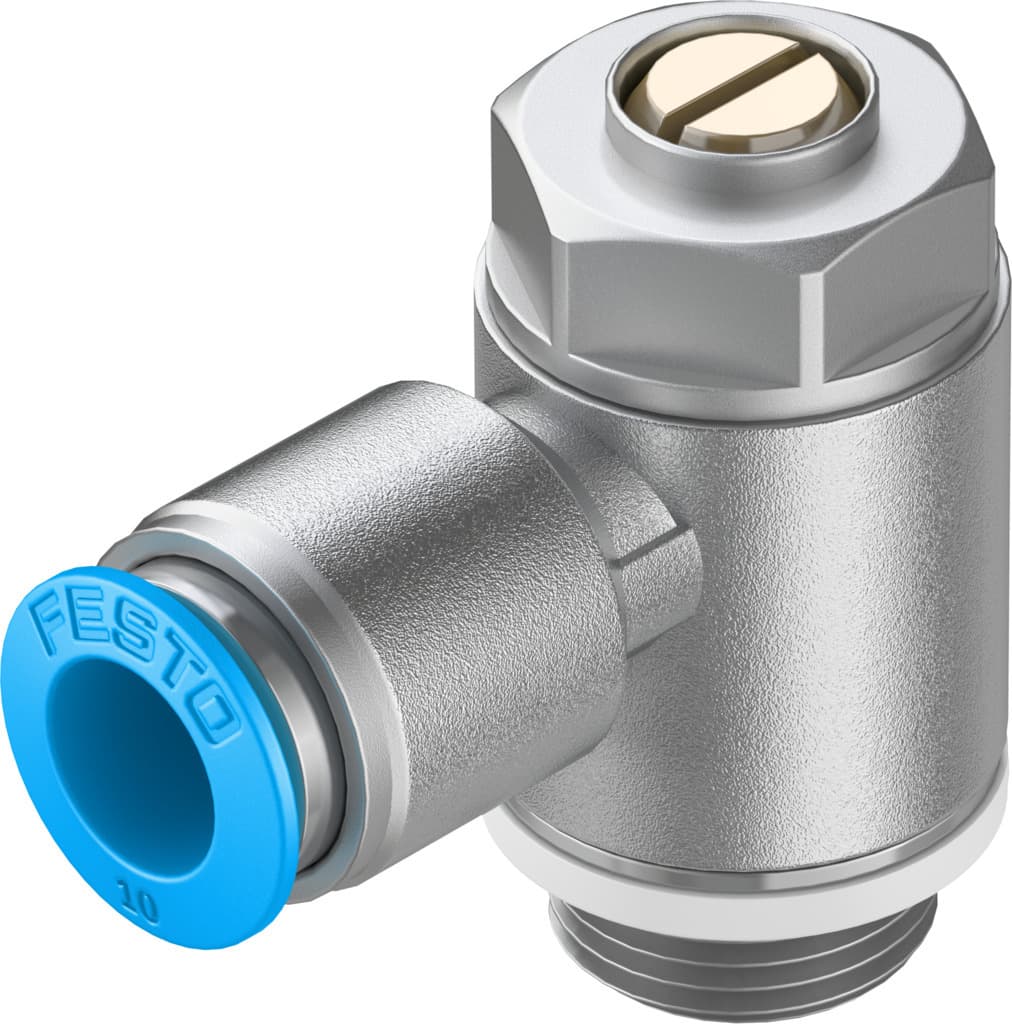

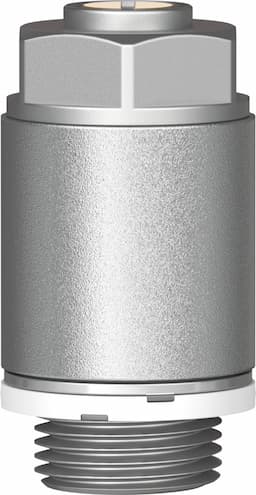

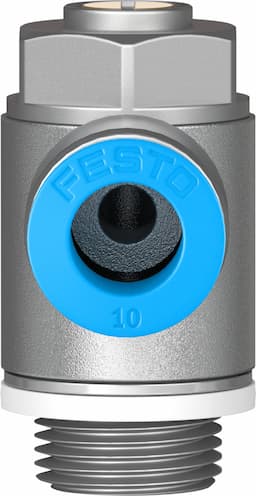

grla-3/8-qs-10-d
Product ID:7266
Updated: 2026/4/3
Key Features
- 1Manage air flow efficiently for optimal industrial performance. 2、Prevent backflow with a piloted non-return function for system integrity. 3、Adjust easily using the slotted head screw and versatile QS-10 ports. 4、Withstand tough conditions with high-quality aluminum alloy and brass construction. 5、Meet ISO 8573-1:2010 and RoHS standards for quality and safety compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-10 |
| Pneumatic connection 2 | G3/8 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 900l/min |
| Standard nominal flow rate in non-return direction | 540l/min 975l/min | Ambient temperature | -10°C 60°C |
| Maritime classification | See certificate | Mounting position | Any |
| Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 1400l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 1160l/min 1620l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 10Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 60g |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
| Manufacturer ID | 193151 |
Specifications may be subject to change without notice
