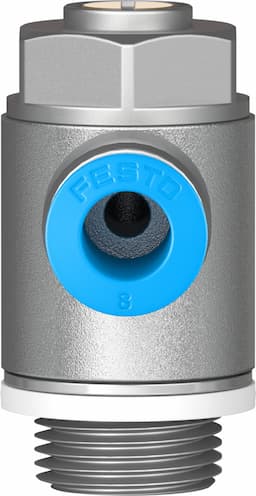

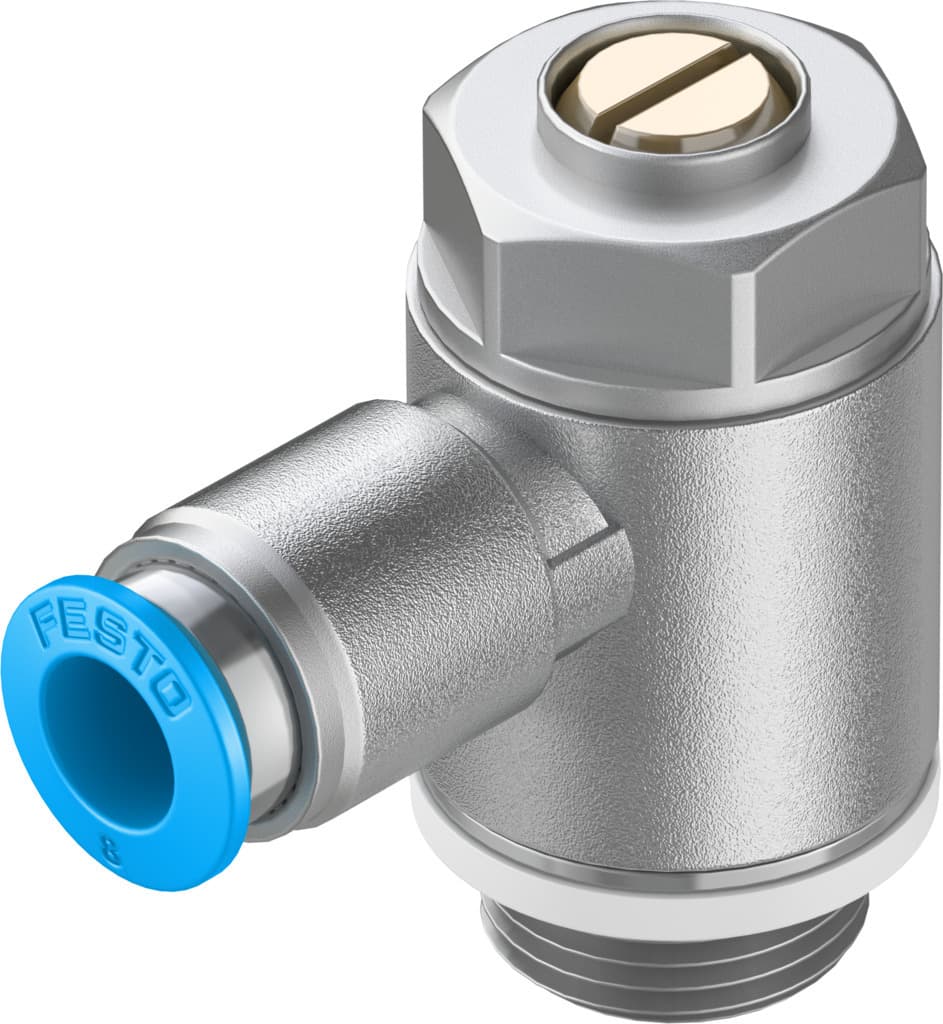

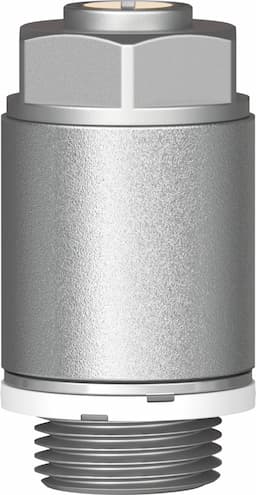

grla-3/8-qs-8-d
Product ID:7265
Updated: 2026/7/4
Key Features
- 1Ensure one-way flow with a piloted non-return function.
- 2Adjust flow easily using the integrated knurled screw.
- 3Monitor valve status via the built-in proximity sensor.
- 4Simplify installation with push-in T-connector and L-fitting.
- 5Rely on durable RoHS-compliant aluminum and NBR construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G3/8 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 820l/min |
| Standard nominal flow rate in non-return direction | 450l/min 850l/min | Ambient temperature | -10°C 60°C |
| Maritime classification | See certificate | Mounting position | Any |
| Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 1300l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 1080l/min 1420l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 10Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 60g |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
| Manufacturer ID | 193150 |
Specifications may be subject to change without notice
