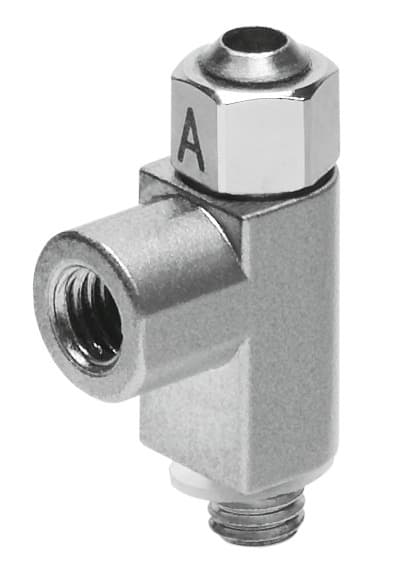

grla-m3
Product ID:5361
Updated: 2026/4/3
Key Features
- 1Deliver precise exhaust air control with a 41L/min flow rate. 2、Connect easily using QS-3 push-in and M3 threaded ports. 3、Ensure durability with brass screws, NBR seals, and zinc construction. 4、Operate reliably from -10°C to +60°C and 0.2 to 10 bar. 5、Meet strict standards including ISO 8573-1:2010 and RoHS.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | M3 |
| Pneumatic connection 2 | M3 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 18l/min |
| Standard nominal flow rate in non-return direction | 18l/min 20l/min | Operating pressure | 0.2bar 10bar |
| Ambient temperature | -10°C 60°C | Maritime classification | See certificate |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991452 | Standard flow rate in flow control direction 6 -> 0 bar | 33l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 33l/min 37l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Max. tightening torque | 0.3Nm | Product weight | 2g |
| Material of screwed plug | Brass Nickel-plated | Note on materials | RoHS-compliant |
| Seals material | NBR | Material of adjusting screw | Brass |
| Swivel joint material | Die-cast zinc | Manufacturer ID | 175038 |
Specifications may be subject to change without notice
