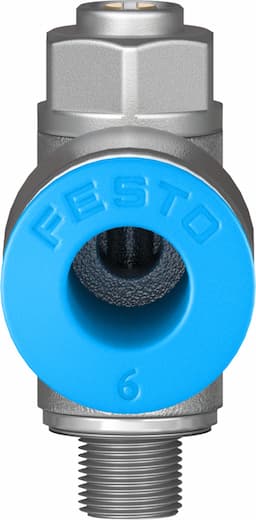

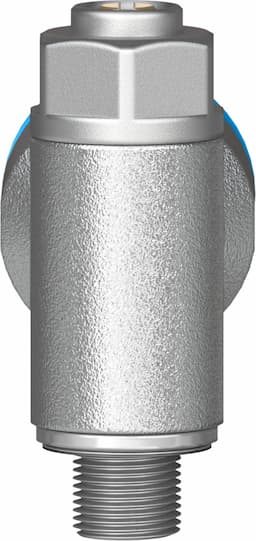

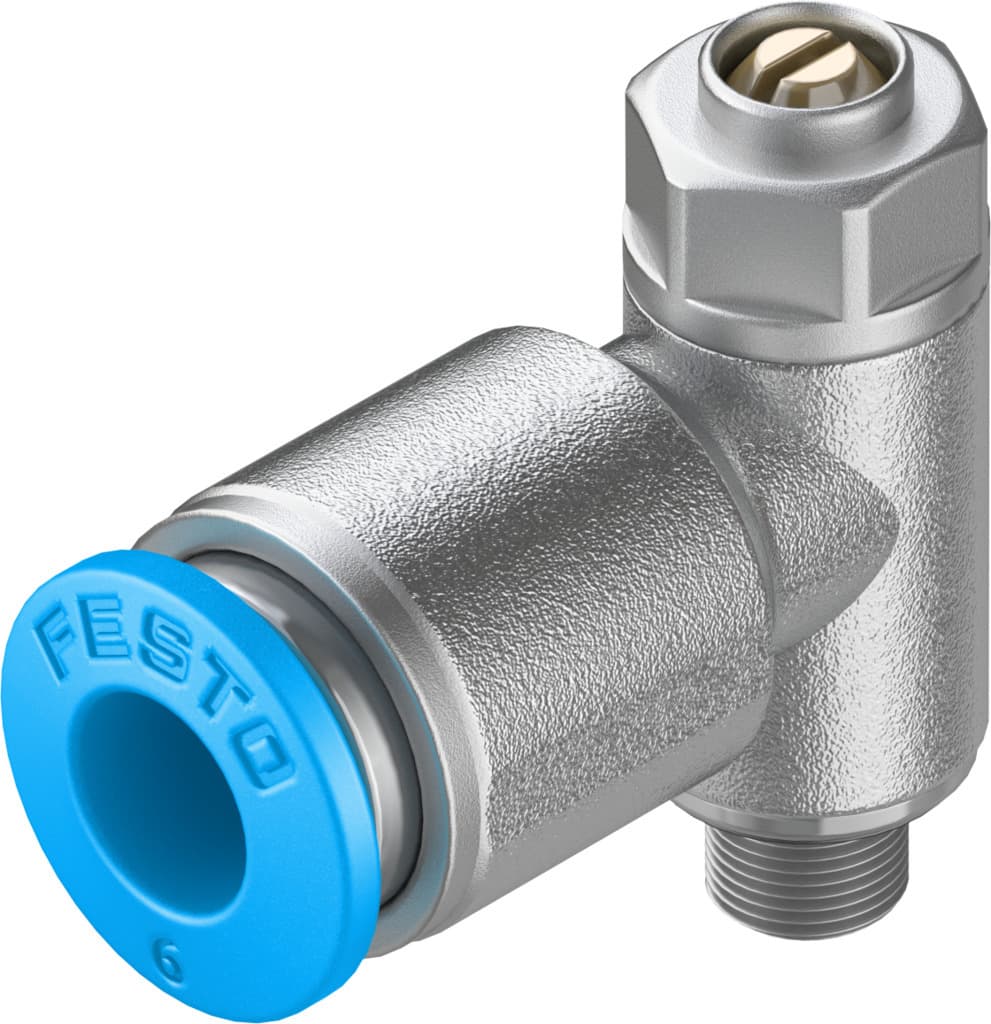

grla-m5-qs-6-d
Product ID:7256
Updated: 2026/7/4
Key Features
- 1Control exhaust air efficiently with 115 l/min flow.
- 2Adjust settings easily using the slotted screw head.
- 3Operate reliably from -10°C to +60°C.
- 4Ensure durability with brass and NBR seals.
- 5Meet compliance standards including RoHS.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 115l/min |
| Standard nominal flow rate in non-return direction | 70l/min 110l/min | Ambient temperature | -10°C 60°C |
| Maritime classification | See certificate | Mounting position | Any |
| Symbol | 00991452 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 185l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 145l/min 170l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 0.8Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 13g |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
| Manufacturer ID | 193139 |
Specifications may be subject to change without notice
