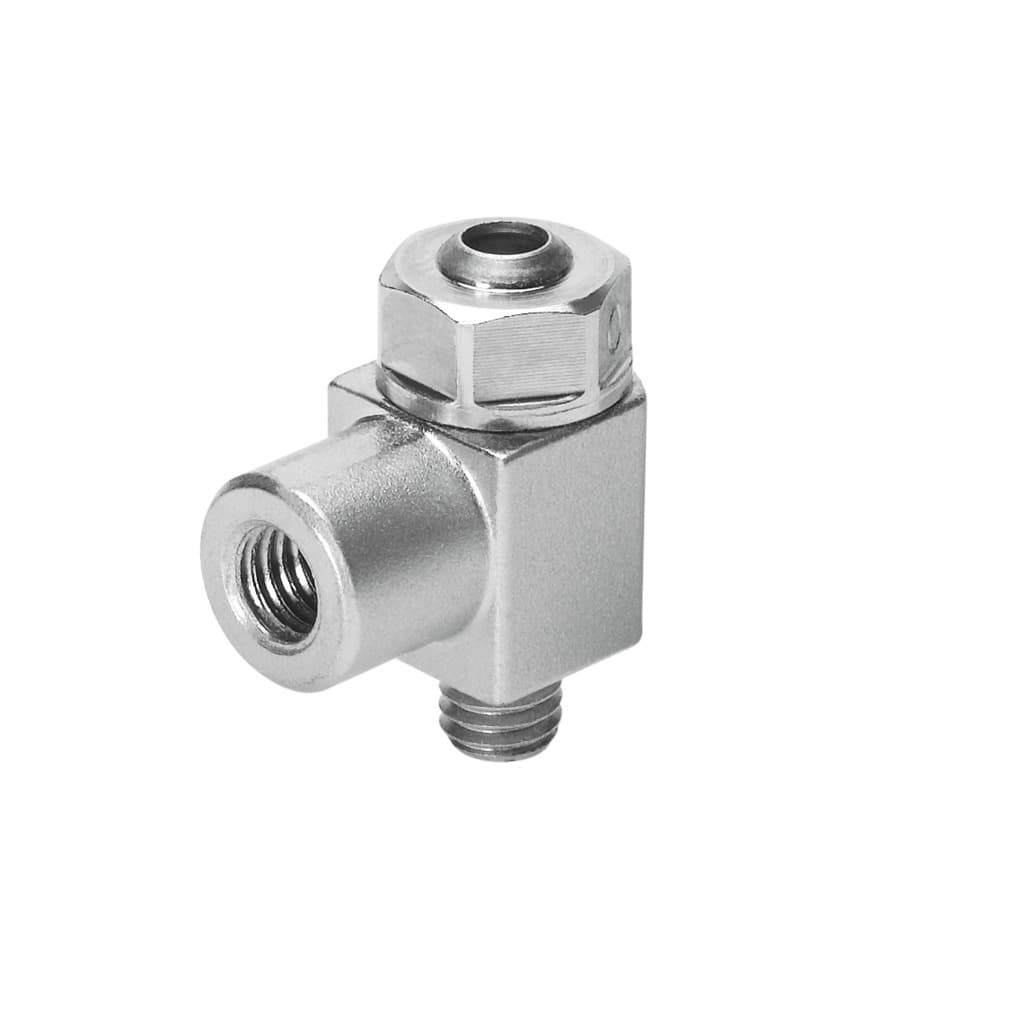

grlo-m5-b
Product ID:2272
Updated: 2026/7/4
Key Features
- 1Adjust flow precisely for pneumatic applications.
- 2Handle up to 169 l/min maximum flow rate.
- 3Operate within a 0 to 10 bar pressure range.
- 4Mount in any position for versatile installation.
- 5Ensure durability with corrosion-resistant materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control function | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 95l/min |
| Operating pressure | 0bar 10bar | Ambient temperature | -10°C 60°C |
| Nominal width | 2mm | Mounting position | Any |
| Symbol | 00991454 | Standard flow rate in flow control direction 6 -> 0 bar | 169l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Max. tightening torque | 1.5Nm |
| Product weight | 11g | Material of screwed plug | Brass Nickel-plated |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
| Manufacturer ID | 151181 |
Specifications may be subject to change without notice
