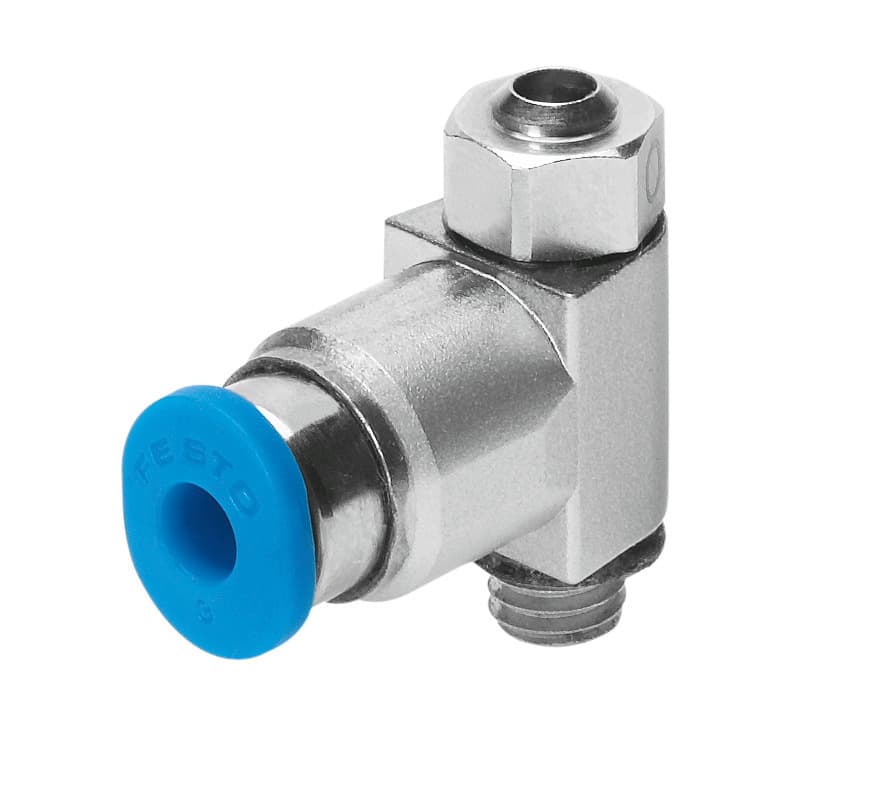

grlo-m5-qs-3-lf-c
Product ID:5368
Updated: 2026/7/4
Key Features
- 1Control compressed air precisely with the GRLO-M5-QS-3-LF-C valve.
- 2Achieve efficient airflow up to 80 l/min maximum flow.
- 3Adjust flow easily using the integrated throttle function.
- 4Ensure durability with brass construction and NBR seals.
- 5Maintain compliance using ISO8573-1:2010 certified air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control function | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | QS-3 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 40l/min |
| Operating pressure | 0bar 10bar | Ambient temperature | -10°C 60°C |
| Mounting position | Any | Symbol | 00991454 |
| Standard flow rate in flow control direction 6 -> 0 bar | 80l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Max. tightening torque | 1.5Nm | Product weight | 9g |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
| Manufacturer ID | 175054 |
Specifications may be subject to change without notice
