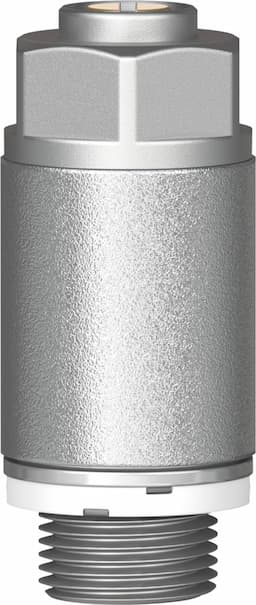

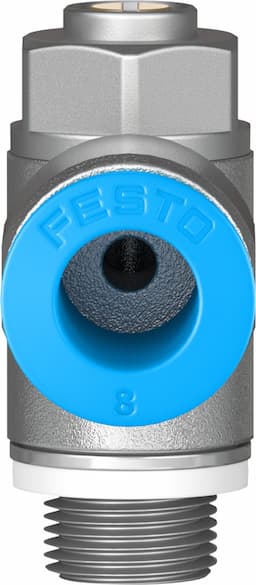

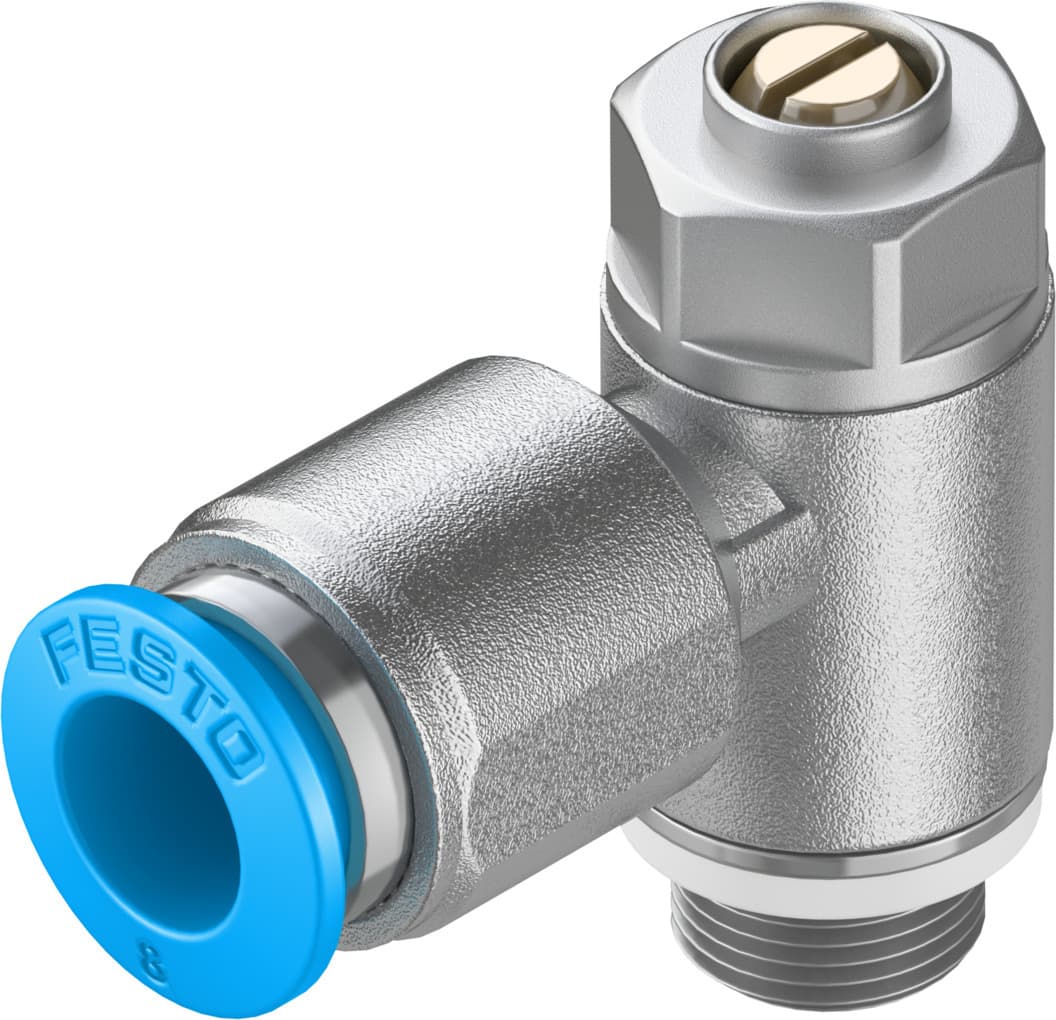

grlz-1/8-qs-8-d
Product ID:7274
Updated: 2026/4/3
Key Features
- 1Ensure precise control of compressed air flow for pneumatic applications. 2、Support multiple pneumatic connections like QS-8 and G1/8. 3、Handle a wide operating pressure range from 0.2 to 10 bar. 4、Construct with durable wrought aluminum alloy and NBR seals. 5、Simplify installation and adjustment with slotted head screw.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 215l/min |
| Standard nominal flow rate in non-return direction | 175l/min 250l/min | Ambient temperature | -10°C 60°C |
| Maritime classification | See certificate | Mounting position | Any |
| Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 370l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 390l/min 470l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
| Manufacturer ID | 193159 |
Specifications may be subject to change without notice
