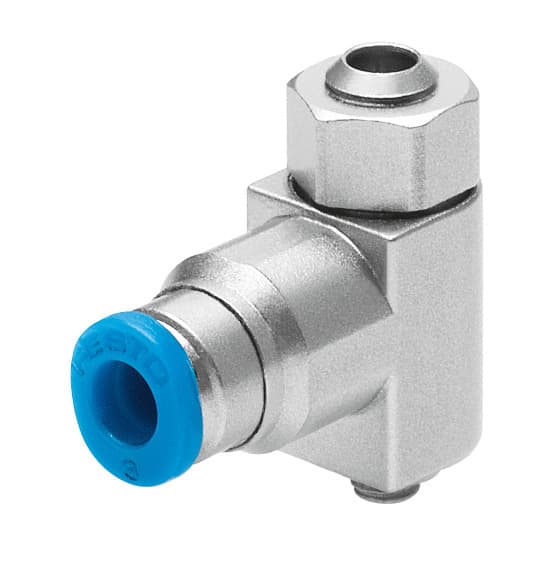

grlz-m3-qs-3
Product ID:5366
Updated: 2026/4/3
Key Features
- 1Ensure precise one-way flow control for automation. 2、Adjust flow rate easily via slotted screw. 3、Operate reliably from 0.2 to 10 bar pressure. 4、Withstand ambient temperatures from -10°C to 60°C. 5、Integrate a compact, 7-gram RoHS-compliant valve.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-3 |
| Pneumatic connection 2 | M3 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 41l/min |
| Standard nominal flow rate in non-return direction | 27l/min 44l/min | Operating pressure | 0.2bar 10bar |
| Ambient temperature | -10°C 60°C | Mounting position | Any |
| Symbol | 00991453 | Standard flow rate in flow control direction 6 -> 0 bar | 95l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 75l/min 100l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Max. tightening torque | 0.3Nm | Product weight | 7g |
| Material of screwed plug | Brass Nickel-plated | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc |
| Manufacturer ID | 175043 |
Specifications may be subject to change without notice
