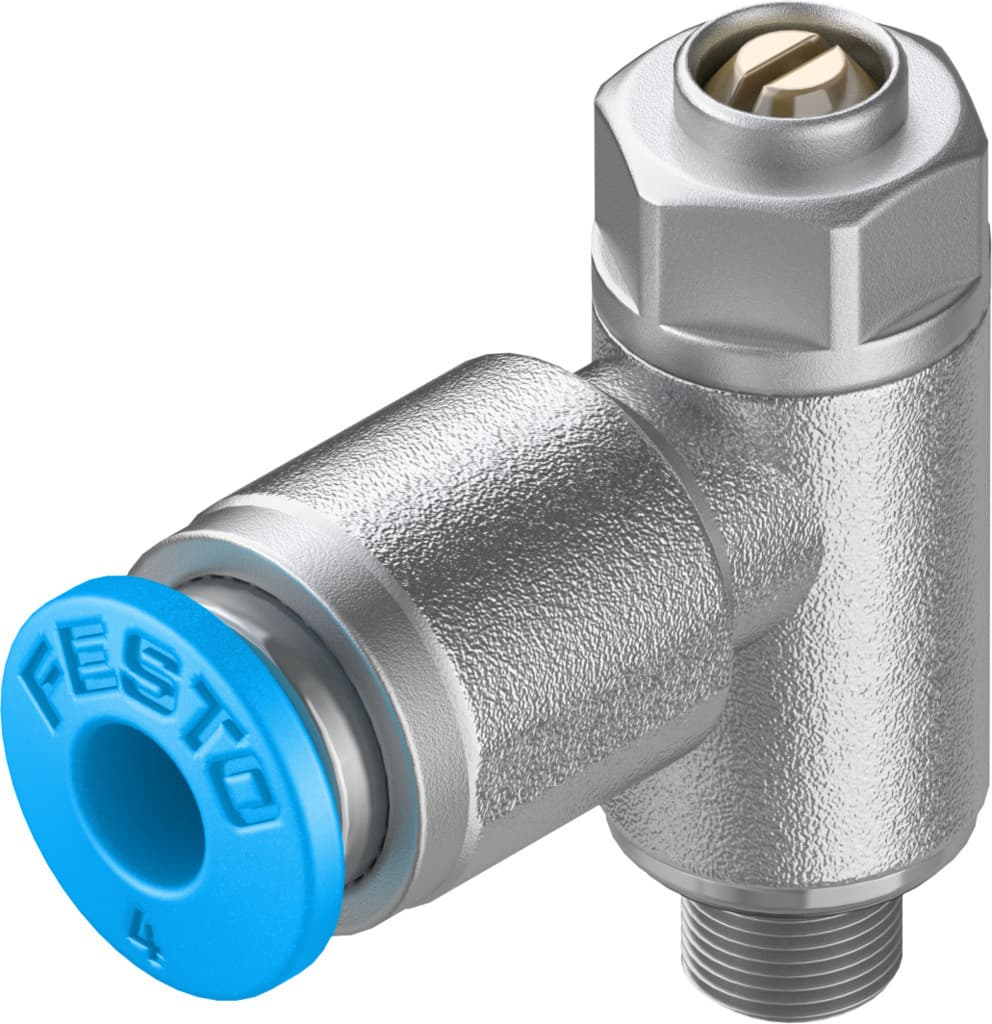

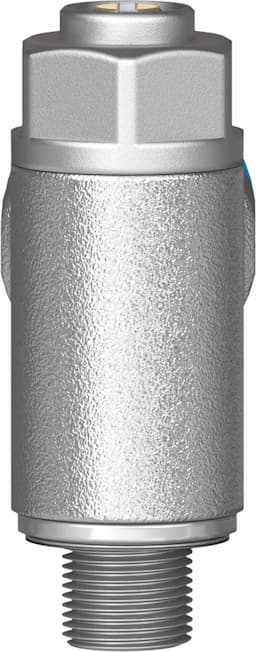

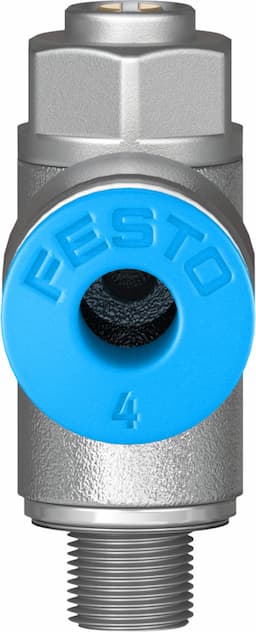

grlz-m5-qs-4-d
Product ID:7269
Updated: 2026/4/3
Key Features
- 1Ensure precise pneumatic control with the reliable Festo GRLZ-M5-QS-4-D valve. 2、Integrate easily using standard M5 and 4mm ports for wide compatibility. 3、Withstand harsh conditions including vibration, shock, and temperature extremes. 4、Achieve 80 million cycles for safety-related applications per ISO 13849-1. 5、Adjust flow rates quickly via the recessed screwdriver slot for easy setup.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | M5 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 110l/min |
| Standard nominal flow rate in non-return direction | 65l/min 110l/min | Ambient temperature | -10°C 60°C |
| Maritime classification | See certificate | Mounting position | Any |
| Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 160l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 150l/min 180l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 0.8Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 13g |
| Material of screwed plug | Brass | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
| Manufacturer ID | 193154 |
Specifications may be subject to change without notice
