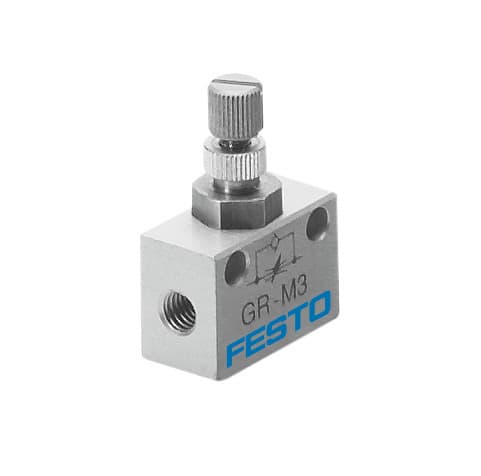

gr-m3
Product ID:3892
Updated: 2026/7/4
Key Features
- 1Control pneumatic flow precisely with the Festo GR-M3 valve.
- 2Achieve a 29.5 l/min nominal flow rate for optimal performance.
- 3Construct the valve from durable, corrosion-resistant wrought aluminum alloy.
- 4Adjust flow easily using the knurled screw adjustment component.
- 5Ensure safe operation with RoHS compliance and ISO 8573-1:2010 compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | M3 |
| Pneumatic connection 2 | M3 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 29.5l/min |
| Standard nominal flow rate in non-return direction | 26l/min 27.5l/min | Operating pressure | 0.3bar 8bar |
| Ambient temperature | -10°C 60°C | Housing material | Wrought aluminum alloy |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 2.5g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Material of adjusting screw | Brass | Manufacturer ID | 15899 |
Specifications may be subject to change without notice
