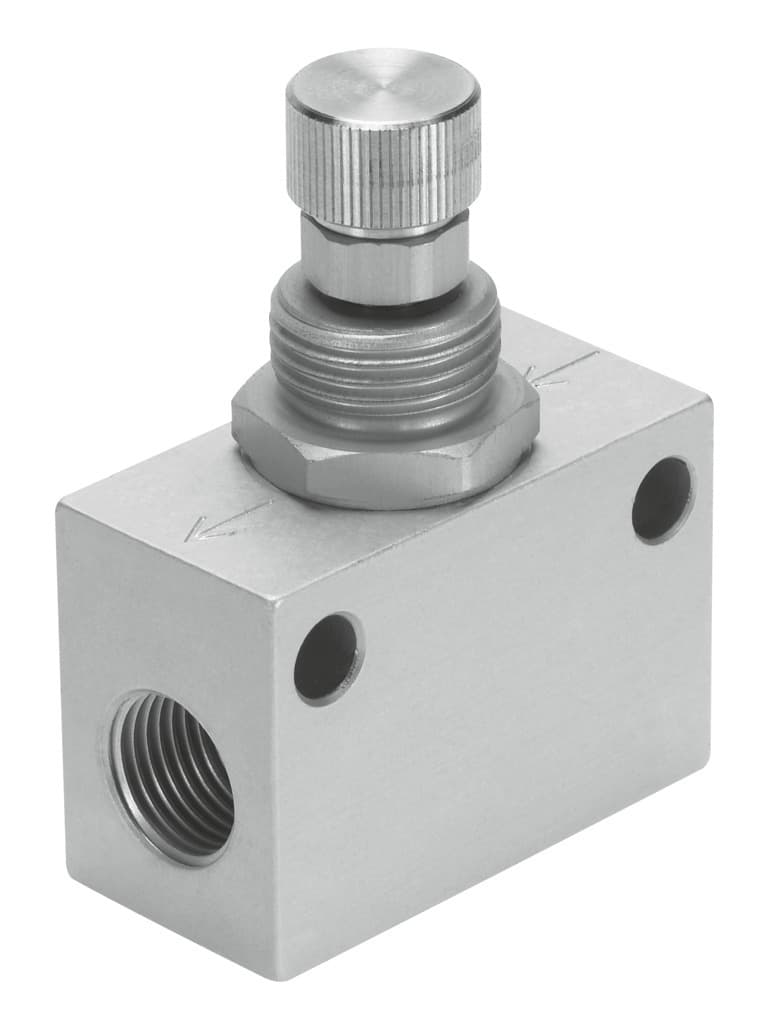

gr-m5-b
Product ID:2283
Updated: 2026/7/4
Key Features
- 1Construct housing from durable wrought aluminum alloy.
- 2Ensure reliable sealing with NBR for varied conditions.
- 3Adjust flow precisely using the knurled screw.
- 4Operate across a wide -20°C to 60°C range.
- 5Deliver efficient flow up to 115 l/min.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 115l/min |
| Standard nominal flow rate in non-return direction | 130l/min 137l/min | Operating pressure | 0.5bar 10bar |
| Ambient temperature | -20°C 60°C | Housing material | Wrought aluminum alloy |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 60°C | Nominal width | 2mm |
| Product weight | 19g | Note on materials | RoHS-compliant |
| Seals material | NBR | Sleeve material | POM |
| Material of adjusting screw | High-alloy steel | Nut material | Wrought aluminum alloy |
| Manufacturer ID | 151213 |
Specifications may be subject to change without notice
