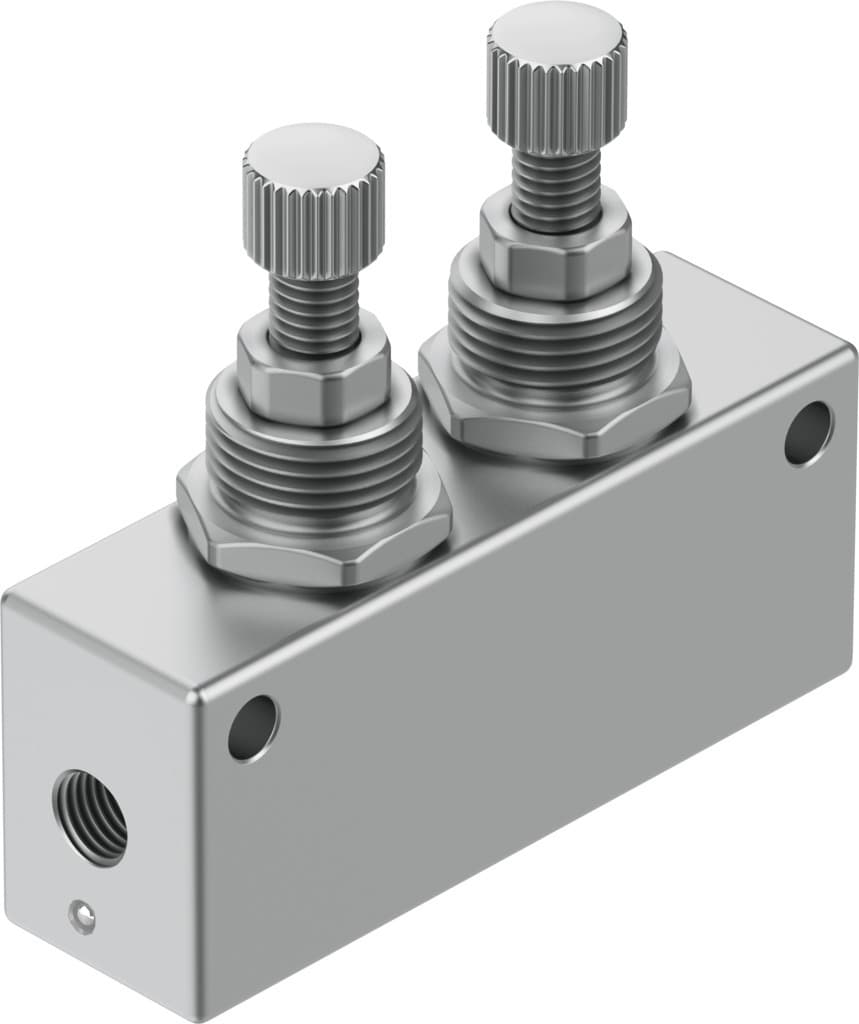

gr-m5x2-b
Product ID:2333
Updated: 2026/4/3
Key Features
- 1Ensure stable airflow to extend component service life. 2、Deliver 95 l/min flow for precise pneumatic control. 3、Operate reliably from 0.5 to 10 bar pressure. 4、Feature a compact design with knurled screw for easy adjustment. 5、Construct with aluminum alloy and NBR seals for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 95l/min |
| Standard nominal flow rate in non-return direction | 75l/min | Operating pressure | 0.5bar 10bar |
| Ambient temperature | -20°C 60°C | Housing material | Wrought aluminum alloy |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991931 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 60°C | Nominal width | 2mm |
| Product weight | 37g | Note on materials | RoHS-compliant |
| Seals material | NBR | Sleeve material | POM |
| Material of adjusting screw | High-alloy steel | Nut material | Wrought aluminum alloy |
| Manufacturer ID | 152611 |
Specifications may be subject to change without notice
