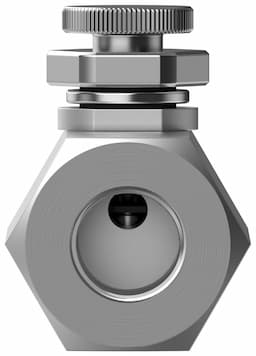

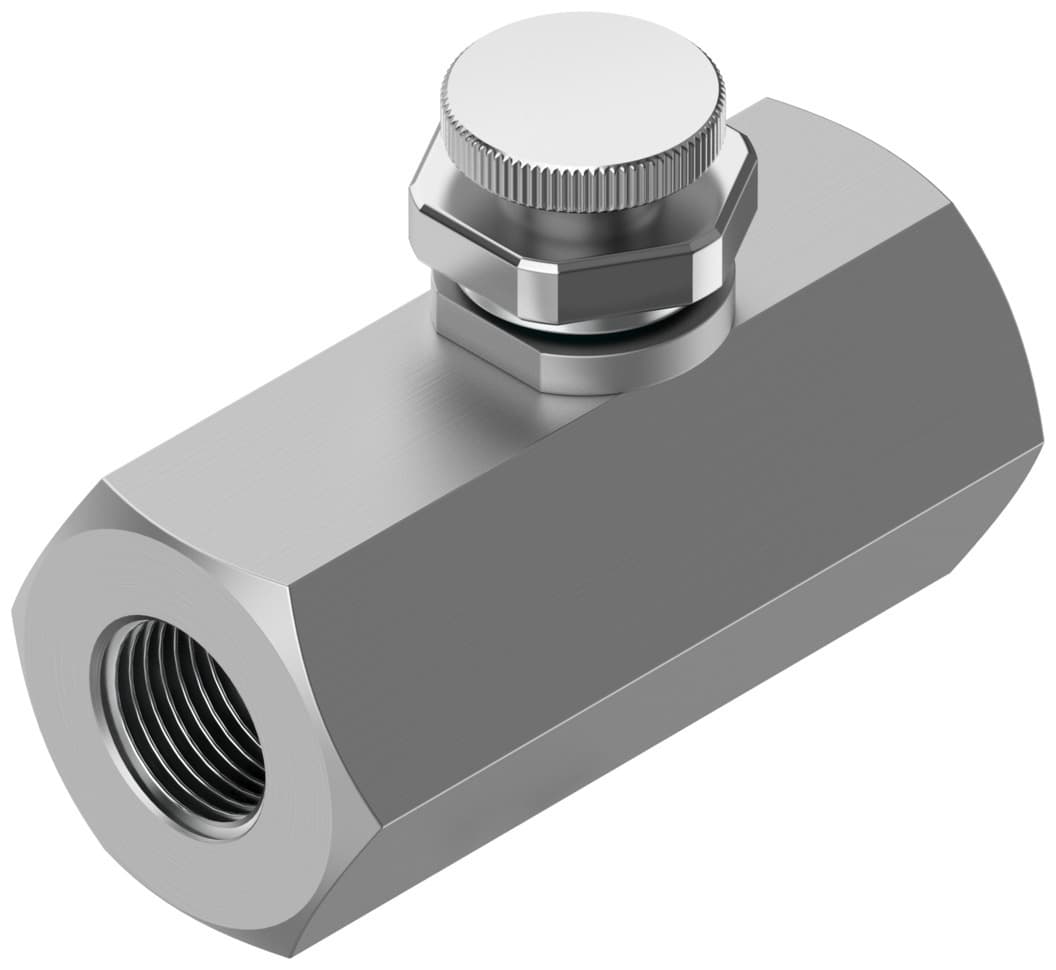

gro-1/4
Product ID:7866
Updated: 2026/4/3
Key Features
- 1Deliver precise flow control with a 350 l/min standard rate. 2、Adjust easily using the knurled screw for reliable operation. 3、Install in-line with G1/4 pneumatic connections for flexibility. 4、Operate reliably from -20°C to 60°C with ISO 8573-1:2010 air. 5、Ensure longevity with RoHS compliance and durable NBR seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control function | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Adjusting element | Knurled screw |
| Type of mounting | Line installation | Standard nominal flow rate in flow control direction | 350l/min |
| Operating pressure | 0bar 10bar | Ambient temperature | -20°C 60°C |
| Housing material | Wrought aluminum alloy | Mounting position | Any |
| Symbol | 00991454 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 60°C | Product weight | 80g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Material of adjusting screw | Steel Galvanized | Manufacturer ID | 2109 |
Specifications may be subject to change without notice
