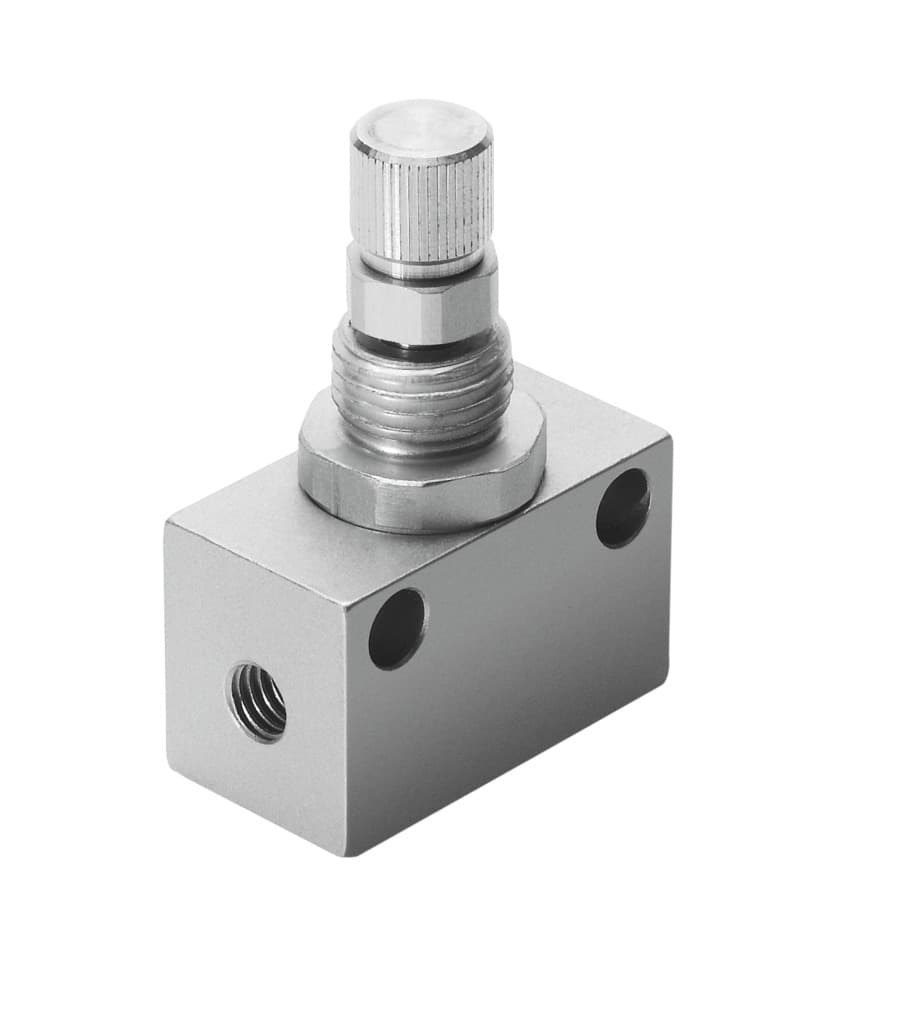

gro-m5-b
Product ID:2284
Updated: 2026/7/4
Key Features
- 1Control flow precisely with a 105 l/min standard rate.
- 2Install easily in tight spaces with a compact 19g design.
- 3Adjust settings quickly using the knurled screw component.
- 4Ensure long-term reliability with durable aluminum alloy housing.
- 5Mount flexibly with front panel or in-line installation options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control function | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 105l/min |
| Operating pressure | 0bar 10bar | Ambient temperature | -20°C 60°C |
| Housing material | Wrought aluminum alloy | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Nominal width | 2mm | Mounting position | Any |
| Symbol | 00991454 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 60°C | Product weight | 19g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Material of adjusting screw | High-alloy steel | Nut material | Wrought aluminum alloy |
| Sleeve material | POM | Manufacturer ID | 151214 |
Specifications may be subject to change without notice
