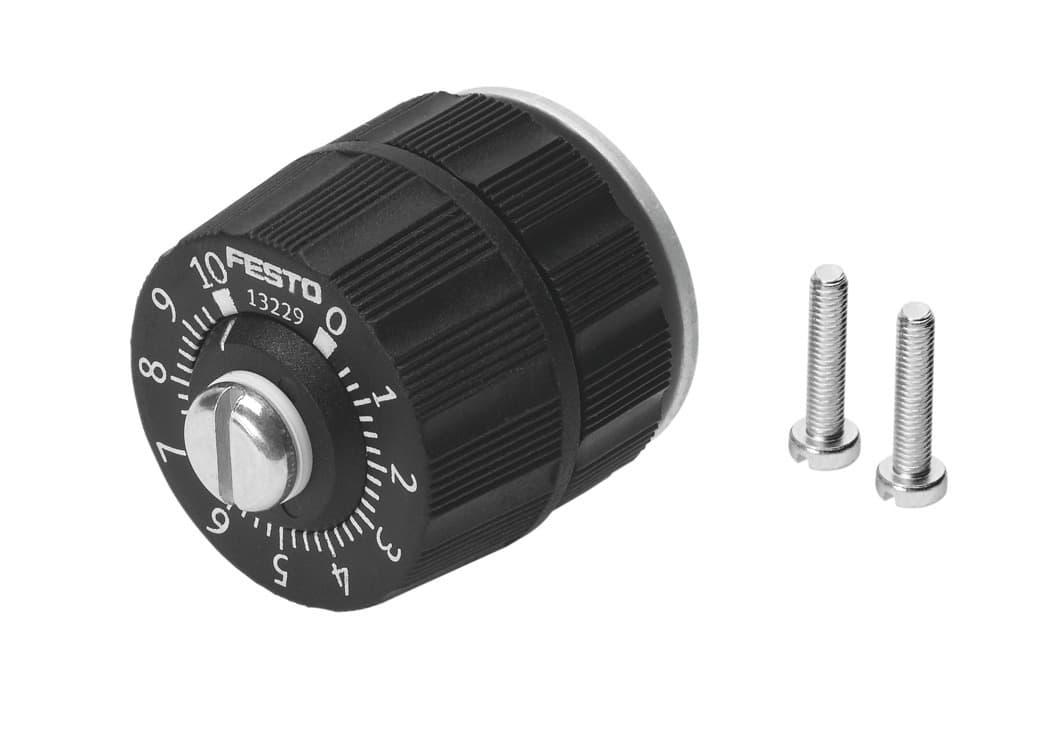

grpo-10-pk-3
Product ID:1174
Updated: 2026/4/3
Key Features
- 1Adjust flow rates precisely for consistent pneumatic performance. 2、Control flow easily with a manual rotary knob and scale. 3、Integrate seamlessly via versatile front-panel mounting. 4、Operate reliably across a 0 to 8 bar pressure range. 5、Withstand harsh conditions with PA, NBR, PVC, and steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control function | Pneumatic connection 1 | PK-3 |
| Pneumatic connection 2 | PK-3 | Actuation type | Manual |
| Adjusting element | Rotary knob with scale | Type of mounting | Front panel mounting |
| Standard nominal flow rate in flow control direction | 3.8l/min | Operating pressure | 0bar 8bar |
| Ambient temperature | -10°C 50°C | Housing material | PA-reinforced |
| Mounting position | Any | Symbol | 00991454 |
| Operating pressure from 2 to 1 | 0bar 0.5bar | Standard nominal flow rate in flow control direction from 1bar to 0 bar | 1.65l/min |
| Standard flow rate in flow control direction 6 -> 0 bar | 5.2l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [5:4:3] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -10°C 50°C | Product weight | 48g |
| Note on materials | RoHS-compliant | Seals material | NBR PVC |
| Retaining bracket material | Wrought aluminum alloy | PK connections material | Wrought aluminum alloy Brass |
| Material of screws | Steel | Manufacturer ID | 13229 |
Specifications may be subject to change without notice
