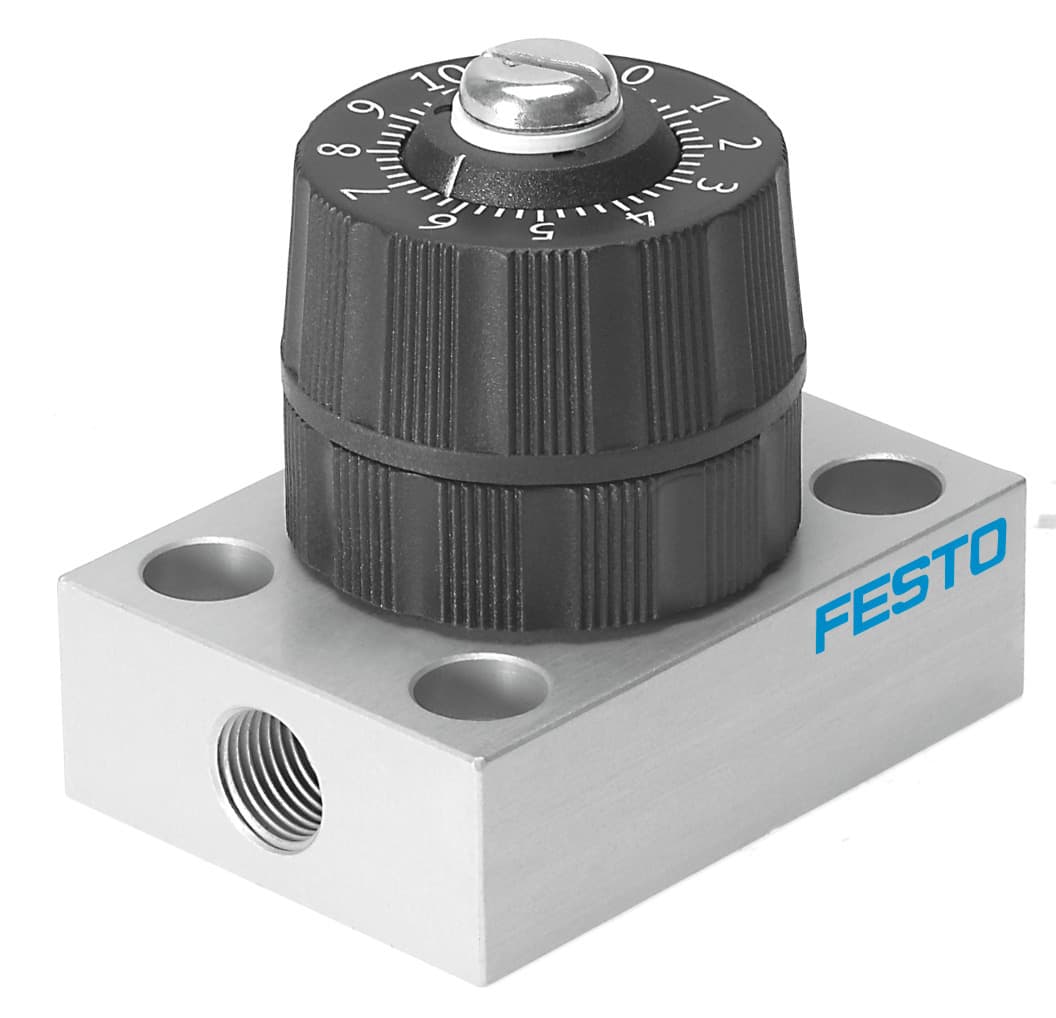

grpo-70-1/8-al
Product ID:10741
Updated: 2026/4/3
Key Features
- 1Achieve precise pneumatic control with the GRPO-70-1/8-AL valve for reliable flow management. 2、Integrate easily using G1/8 pneumatic connections for ports 1 and 2. 3、Ensure long-lasting performance in high-precision industrial applications. 4、Simplify sourcing within Festo's comprehensive pneumatic component range. 5、Optimize processes in manufacturing, packaging, and automation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control function | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Actuation type | Manual |
| Adjusting element | Rotary knob with scale | Type of mounting | On sub-base |
| Standard nominal flow rate in flow control direction | 40.7l/min | Operating pressure | 0bar 8bar |
| Ambient temperature | -10°C 50°C | Housing material | PA-reinforced |
| Mounting position | Any | Symbol | 00991454 |
| Operating pressure from 2 to 1 | 0bar 0.5bar | Standard nominal flow rate in flow control direction from 1bar to 0 bar | 19l/min |
| Standard flow rate in flow control direction 6 -> 0 bar | 60l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [5:4:3] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -10°C 50°C | Product weight | 110g |
| Note on materials | RoHS-compliant | Material of sub-base | Wrought aluminum alloy |
| Seals material | NBR PVC | Material of screws | Steel |
| Manufacturer ID | 542024 |
Specifications may be subject to change without notice
