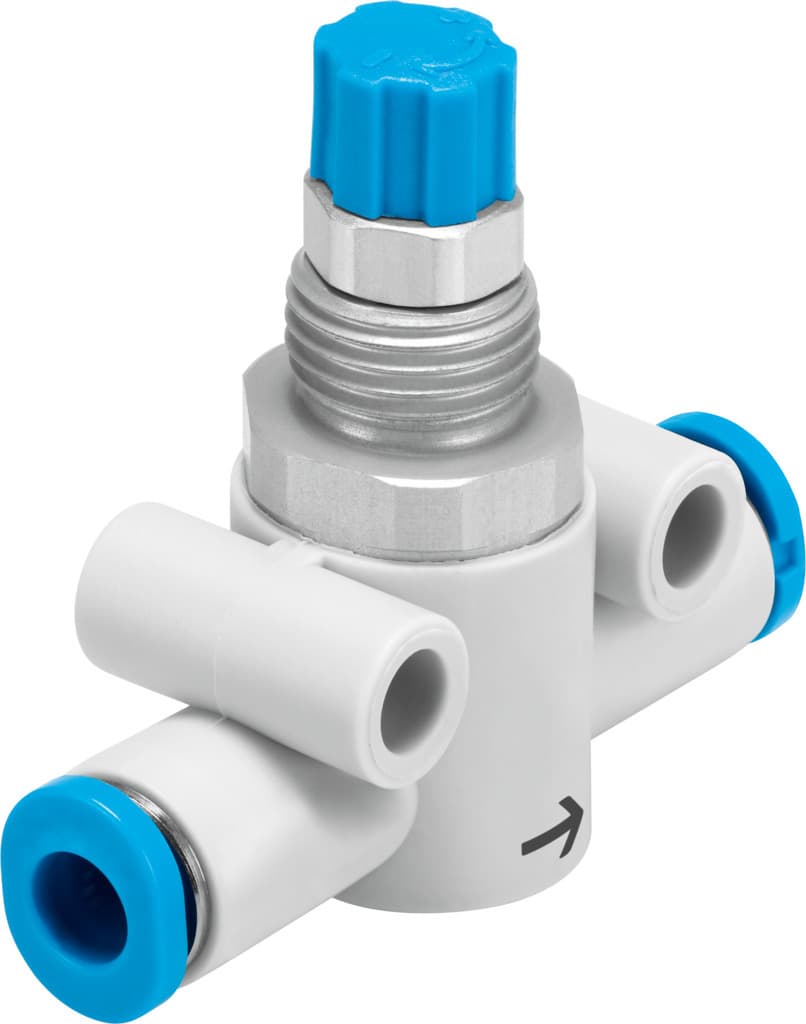

gr-qs-3
Product ID:7363
Updated: 2026/4/3
Key Features
- 1Control airflow precisely with the GR-QS-3 one-way flow valve. 2、Adjust settings easily using the integrated knurled screw. 3、Prevent system backflow to enhance safety and reliability. 4、Connect robustly via pneumatic ports 1QS-3 and 2QS-3. 5、Ensure long-lasting operation in demanding industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | QS-3 |
| Pneumatic connection 2 | QS-3 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole With accessories | Standard nominal flow rate in flow control direction | 85l/min |
| Standard nominal flow rate in non-return direction | 120l/min | Operating pressure | 0.2bar 10bar |
| Ambient temperature | -10°C 60°C | Housing material | PA-reinforced |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 12g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Releasing ring material | POM | Knurled head material | PA-reinforced |
| Material of adjusting screw | High-alloy steel | Manufacturer ID | 193965 |
Specifications may be subject to change without notice
