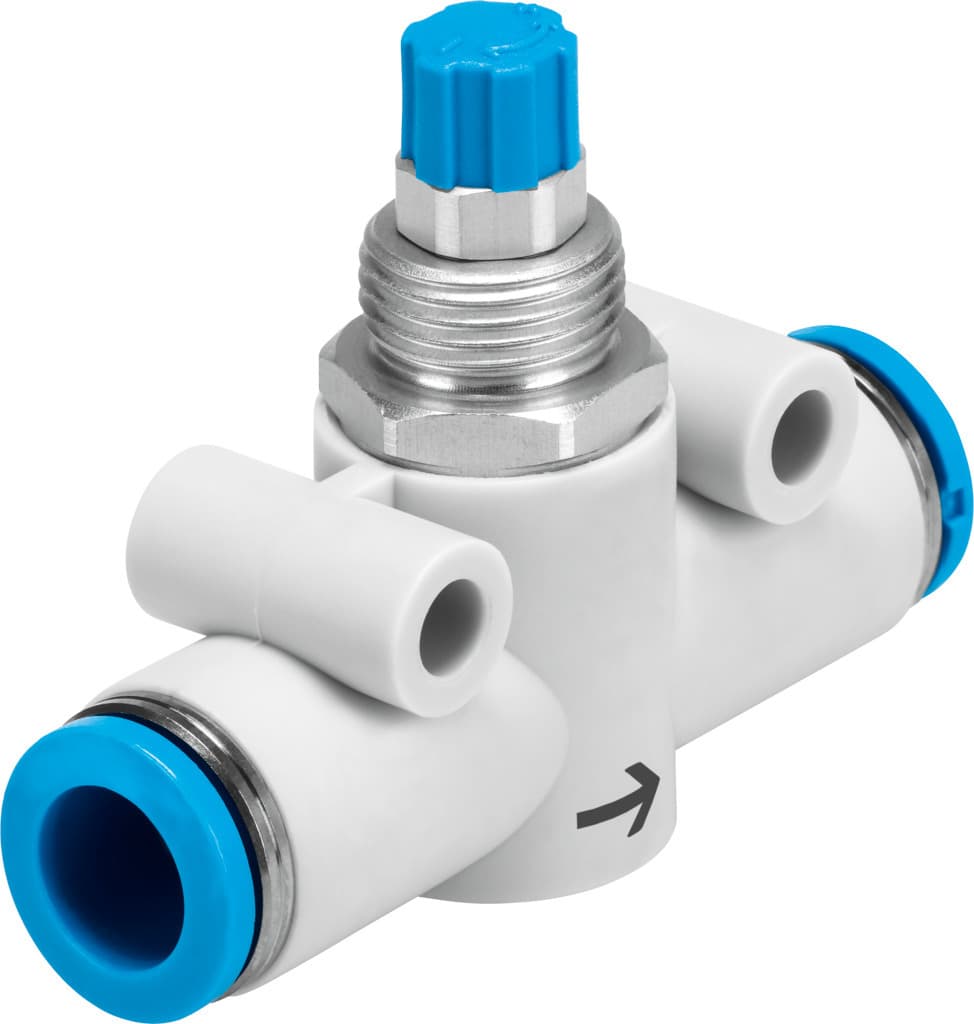

gr-qs-8
Product ID:7366
Updated: 2026/4/3
Key Features
- 1Control airflow precisely with a 265 l/min nominal flow rate. 2、Adjust settings easily using the knurled screw element. 3、Ensure durability with PA-reinforced housing and NBR seals. 4、Operate reliably across a wide -10°C to 60°C temperature range. 5、Integrate a lightweight, RoHS-compliant 23-gram valve.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | QS-8 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole With accessories | Standard nominal flow rate in flow control direction | 265l/min |
| Standard nominal flow rate in non-return direction | 500l/min | Operating pressure | 0.2bar 10bar |
| Ambient temperature | -10°C 60°C | Housing material | PA-reinforced |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 23g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Releasing ring material | POM | Knurled head material | PA-reinforced |
| Material of adjusting screw | High-alloy steel | Manufacturer ID | 193970 |
Specifications may be subject to change without notice
