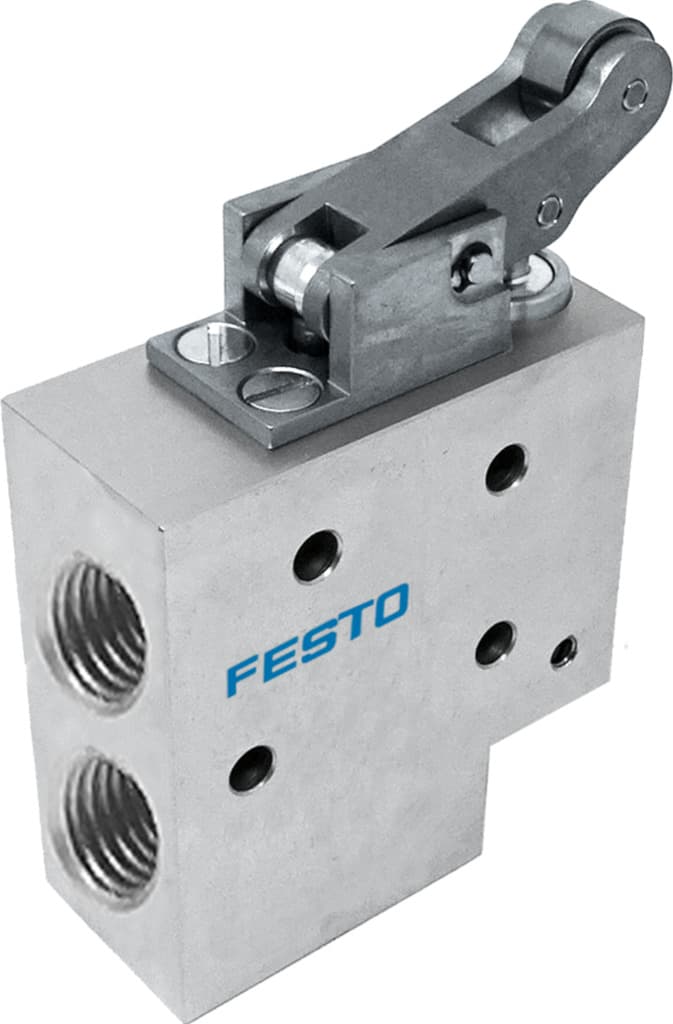

grr-1/2
Product ID:7867
Updated: 2026/4/3
Key Features
- 1Ensure durable performance with wrought aluminum alloy construction. 2、Achieve precise flow control via an adjustable roller lever. 3、Deliver efficient operation with 1300 l/min nominal flow rate. 4、Handle versatile applications across a 0.3-10 bar pressure range. 5、Integrate easily into compact spaces with 117x34 mm dimensions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Adjusting element | Roller lever |
| Type of mounting | With through-hole | Standard nominal flow rate in flow control direction | 1300l/min |
| Standard nominal flow rate in non-return direction | 1250l/min | Operating pressure | 0.3bar 10bar |
| Ambient temperature | -10°C 60°C | Housing material | Wrought aluminum alloy |
| Mounting position | Any | Symbol | 00991465 |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -10°C 60°C |
| Product weight | 735g | Manufacturer ID | 2111 |
Specifications may be subject to change without notice
