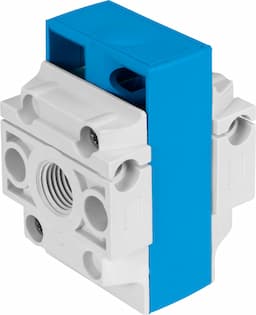

Key Features
- 1Optimize space with a mini valve featuring a 44 mm grid dimension. 2、Control manually for easy operation without complex automation. 3、Ensure reliable performance using a soft sealing principle. 4、Simplify operation with a design lacking exhaust-air function. 5、Apply this versatile valve across various industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | DB | Size | Mini |
| Width dimension | 44mm | Structural design | Shut off valve |
| Actuation type | Manual | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Actuator lock | Padlock (optional) |
| Manual override | None | Type of control | Direct |

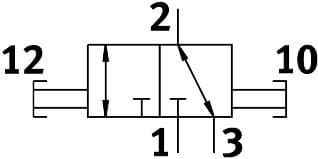

| Symbol | 00995347 | Valve function | 3/2, bistable |
| Operating pressure | 0bar 10bar | Lap | Underlap |
| C value | 6.3l/sbar | b-value | 0.8 |
| Standard nominal flow rate | 2300l/min | Standard nominal flow rate 2-3 | 700l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Type of mounting | Line installation With through-hole |
| Product weight | 66g | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Piston slide material | POM | Seals material | FPM |
| Housing material | PA-reinforced | Manufacturer ID | 3563687 |
