Key Features

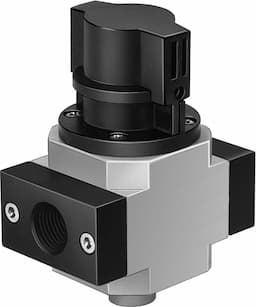

- 1Control pneumatic systems precisely with the compact HE-1/8-D-MINI valve.
- 2Ensure leak-free operation using the soft sealing principle.
- 3Switch easily with the bistable manual override function.
- 4Handle various flow rates for versatile application use.
- 5Rely on Festo's classic series for durable, high-quality performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Manual |
| Sealing principle | Soft | Exhaust air function | Without flow control option |
| Manual override | None | Symbol | 00995571 |
| Valve function | 3/2, bistable | Operating pressure | 0bar 16bar |
| C value | 4.4l/sbar | b-value | 0.44 |
| Standard nominal flow rate | 1000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Type of mounting | Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 192g |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 162806 |
Specifications may be subject to change without notice
