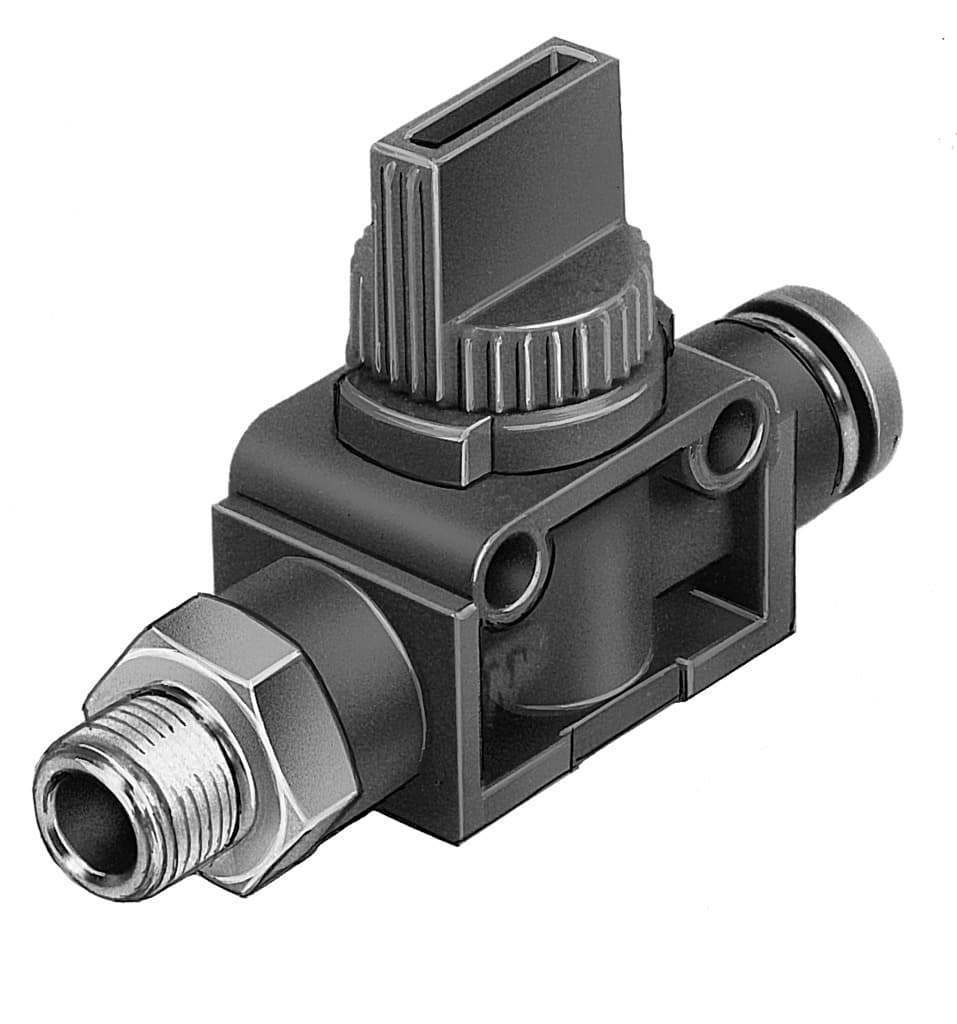

he-2-1/4-qs-8
Product ID:2775
Updated: 2026/7/4
Key Features
- 1Control compressed air flow manually with this 2/2 bistable valve.
- 2Ensure durability using the robust PBT-reinforced housing.
- 3Achieve versatile performance with 423.9 l/min flow.
- 4Extend service life via the soft sealing principle.
- 5Operate reliably in 0°C to 60°C ambient temperatures.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2/2 bistable | Pneumatic connection 1 | R1/4 |
| Pneumatic connection 2 | QS-8 | Actuation type | Manual |
| Type of mounting | Optionally: Direct mounting via through-hole Direct fastening via thread | Standard nominal flow rate | 423.9l/min |
| Nominal width | 3.5mm | Operating pressure | -0.95bar 10bar |
| Ambient temperature | 0°C 60°C | Housing material | PBT-reinforced |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Sealing principle | Soft |
| Mounting position | Any | Structural design | Piston gate valve |
| Type of control | Direct | Flow direction | Reversible |
| Symbol | 00997328 | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | 0°C 60°C |
| Product weight | 36g | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Manufacturer ID | 153472 |
Specifications may be subject to change without notice
