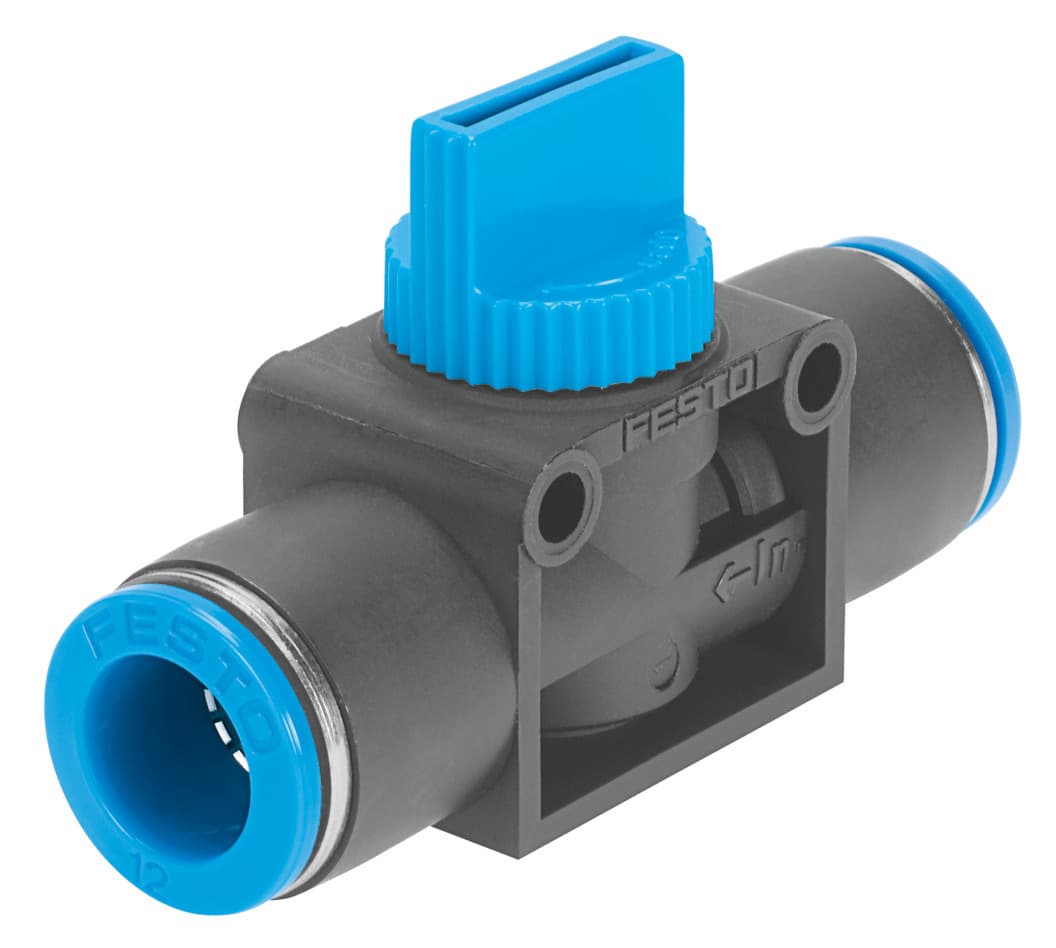

he-2-qs-8
Product ID:2771
Updated: 2026/7/4
Key Features
- 1Ensure precise pneumatic control with the 2/2 double solenoid HE-2-QS-8 valve.
- 2Operate flexibly using the manual override for testing.
- 3Integrate efficiently via pneumatic ports 1QS-8 and 2QS-8.
- 4Handle high-flow demands up to 415 liters per minute.
- 5Rely on Festo's quality for durable, top-performance automation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2/2 bistable | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | QS-8 | Actuation type | Manual |
| Type of mounting | Optionally: Direct mounting via through-hole Line installation | Standard nominal flow rate | 415.8l/min |
| Nominal width | 3.5mm | Operating pressure | -0.95bar 10bar |
| Ambient temperature | 0°C 60°C | Housing material | PBT-reinforced |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Sealing principle | Soft |
| Mounting position | Any | Structural design | Piston gate valve |
| Type of control | Direct | Flow direction | Reversible |
| Symbol | 00997328 | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | 0°C 60°C |
| Product weight | 26g | Note on materials | RoHS-compliant |
| Seals material | NBR | Manufacturer ID | 153468 |
Specifications may be subject to change without notice
