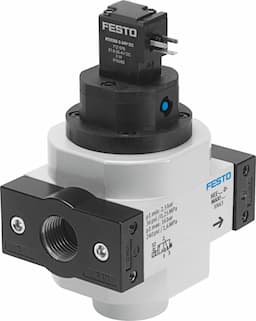

Key Features
- 1Deliver 6000 l/min nominal flow for efficient system operation. 2、Feature a die-cast aluminum housing for corrosion resistance. 3、Utilize pilot actuation for precise compressed air control. 4、Incorporate a mechanical spring return for reliable reset. 5、Operate within -10°C to 60°C per ISO 8573-1 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Sealing principle | Soft | Exhaust air function | Without flow control option |
| Manual override | Detenting | Reset method | Mechanical spring |
| Type of control | Pilot-controlled | Symbol | 00991008 |
| Valve function | 3/2, closed, monostable | Operating pressure | 2.5bar 16bar |
| Lap | Overlap | C value | 28l/sbar |
| b-value | 0.32 | Standard nominal flow rate | 6000l/min |
| Duty cycle | 100% | Coil characteristics | 24 V DC: 2.5 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Type of mounting | Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 800g |
| Pneumatic connection 1 | G3/4 | Pneumatic connection 2 | G3/4 |
| Pneumatic connection 3 | G3/8 | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Electrical connection | Form C Plug as per DIN EN 175301-803 | Signal status display | With accessories |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 172950 |
Specifications may be subject to change without notice
